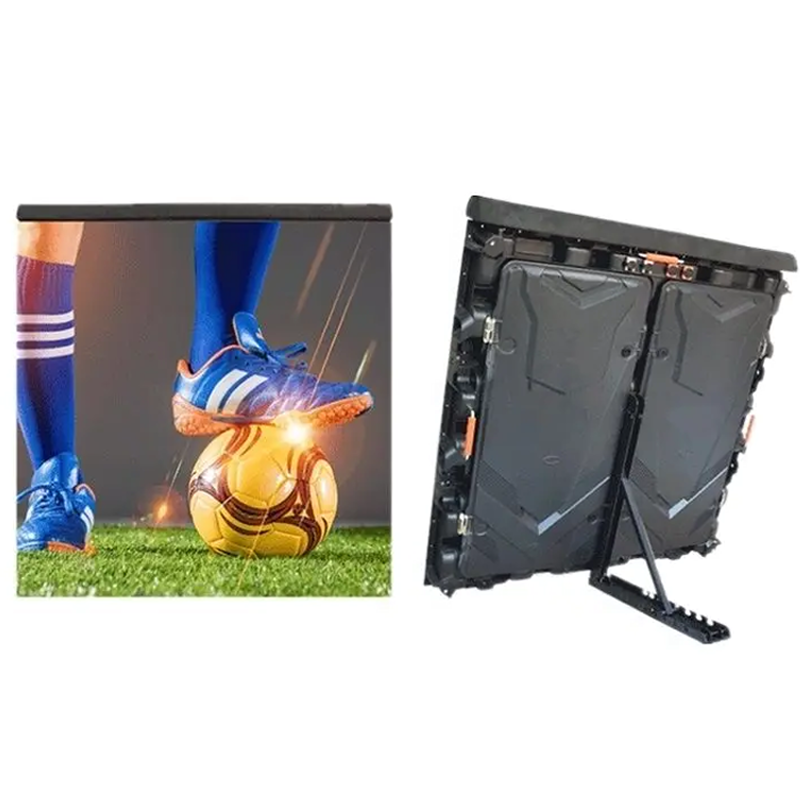

ABXING SD 960 Series Outdoor Stadium LED Display screen P3 P4 P5 P6 P8 P10 | Professional Sports Venue Solution
Engineered for demanding sports environments, the ABXING SD 960 Series Outdoor Stadium LED Display delivers exceptional visual performance with robust protection. Featuring IP65 waterproof construction and innovative service design, this stadium-grade display ensures reliable operation in various outdoor conditions while providing audiences with immersive viewing experiences.
Applicastion: Stadium Surroundings
Type Name: ABXING SD 960 Series Stadium Perimeter LED Display
Pixel pitch:P10mm,P8mm,P6.667mm,P5mm,P4mm,P3.076mm,
Cabinet Size: 960*960mm
Feature: easy to assemble, high resolution, high refresh rate,
energy saving ,Front /Rear Service,
Engineered for demanding sports environments, the ABXING SD 960 Series Outdoor Stadium LED Display delivers exceptional visual performance with robust protection. Featuring IP65 waterproof construction and innovative service design, this stadium-grade display ensures reliable operation in various outdoor conditions while providing audiences with immersive viewing experiences.
Professional Stadium-Grade Protection
IP65 certified fully sealed cabinets provide complete weatherproof protection
Advanced dustproof and moisture-resistant capabilities for outdoor operation
Enhanced environmental protection for long-term stadium use
Durable construction withstands extreme weather conditions

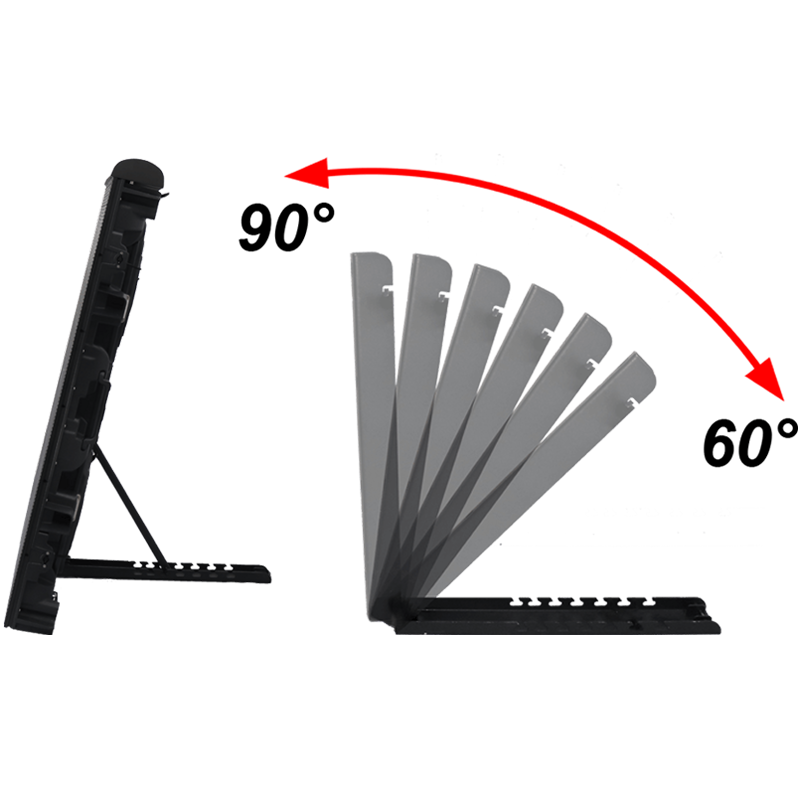

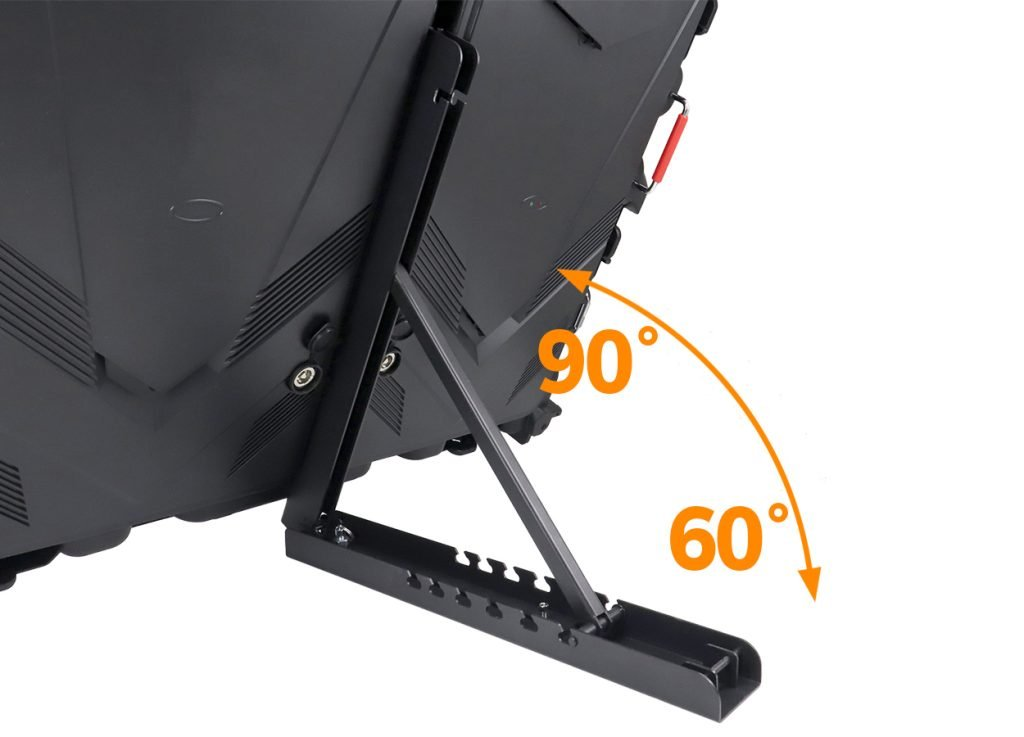

Independent Adjustable Support System
Specially engineered support structure withstands front and rear impacts
Adjustable cabinet angles adapt to specific stadium configurations
Maintains absolute stability during event activities
Flexible positioning for optimal viewing angles

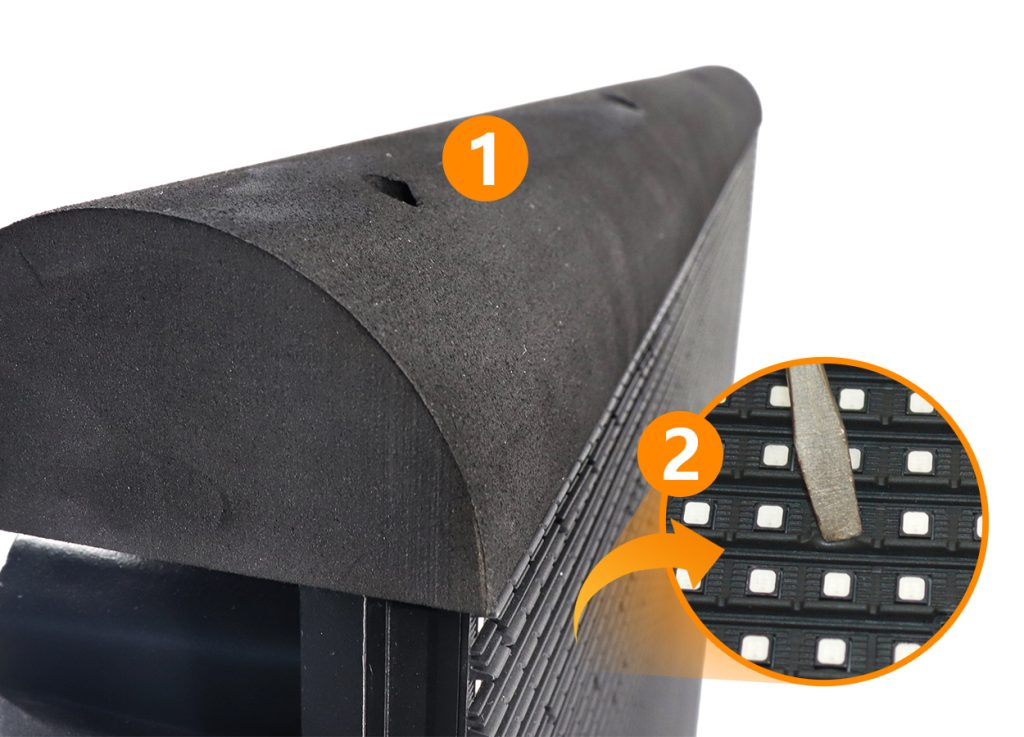

Athlete Safety Protection Design
Integrated soft mask and rubber cushioning system
Impact-absorbing surface protects players during competitions
Safety-first design meets international sports standards
Injury prevention during close-proximity play

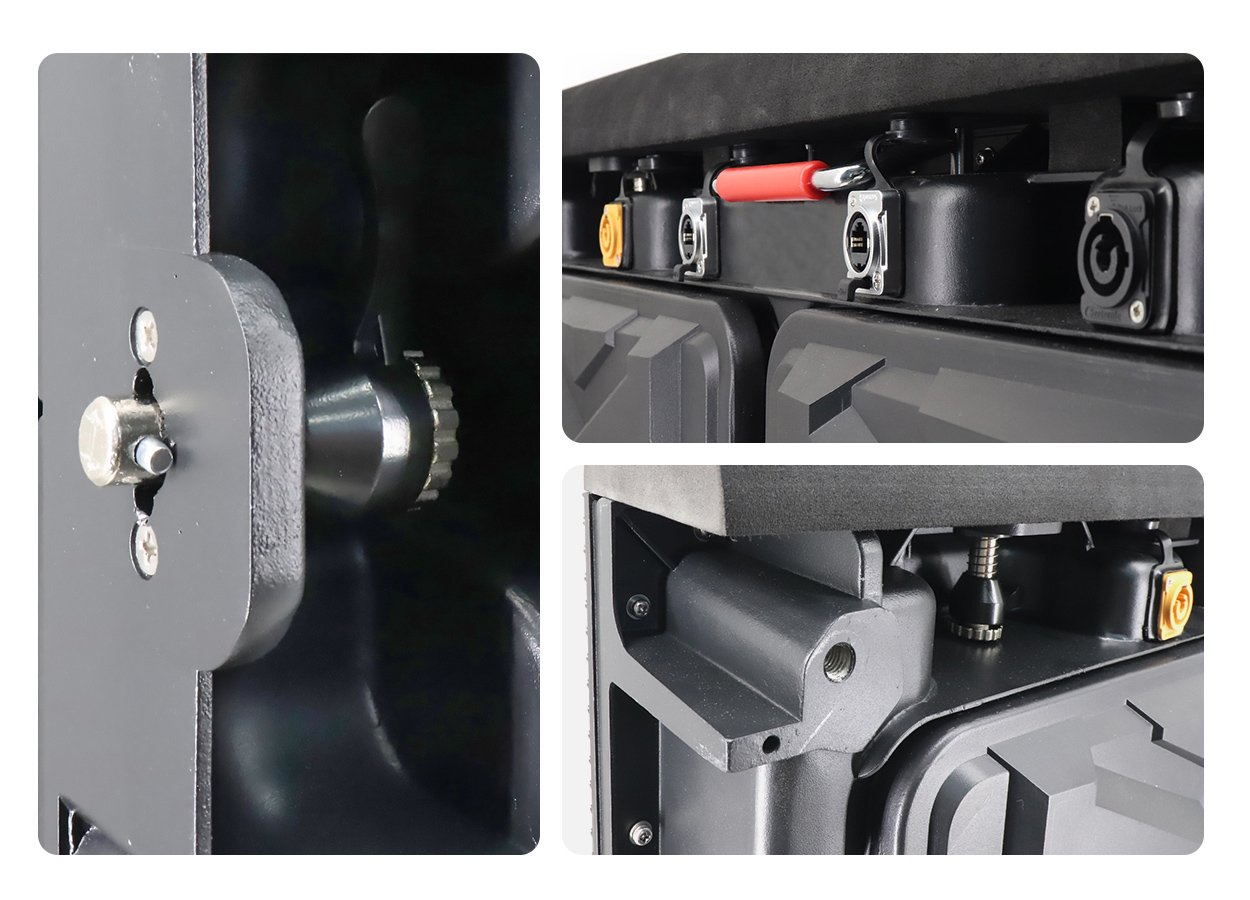

Quick Installation Framework
Dual quick-lock mechanisms on top and side panels
Rapid cabinet interconnection system
Aviation-grade cable connectors between cabinets
Suitable for both permanent and temporary installations

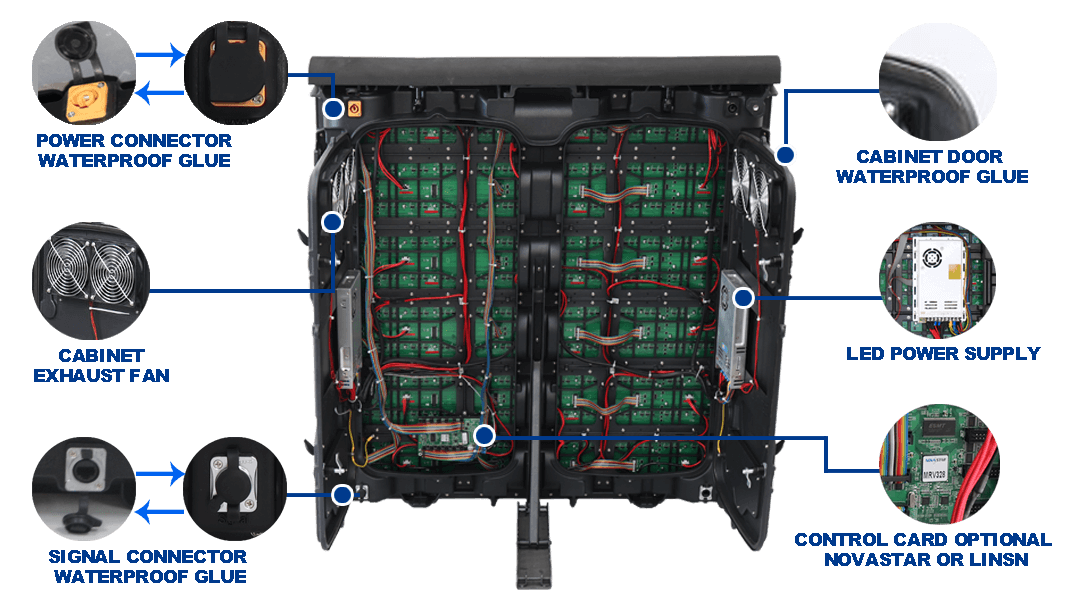

Convenient Rear Service Access
Compact cabinet design with openable back covers
Swift access for maintenance and component replacement
Tool-free service capabilities reduce downtime
Front and rear service options available
Versatile Mounting Configurations
Flexible hanging and stacking installation options
Suitable for fixed stadium perimeter installations
Ideal for rental and temporary event applications
Customizable layouts for different venue requirements
Optimized Stadium Viewing Experience
High brightness levels for clear daytime visibility
Enhanced refresh rates for smooth motion display
Wide field of view covers all spectator areas
Vibrant color performance for engaging content
Professional Sports Applications
Stadium perimeter advertising displays
Scoreboard and replay screen integration
Player information and statistics displays
Sponsorship and promotional content presentation
Event information and entertainment content
The ABXING SD 960 Series represents the perfect combination of professional sports venue requirements and advanced LED display technology. With its focus on safety, reliability, and superior visual performance, this stadium LED solution meets the needs of modern sports facilities while ensuring outstanding audience engagement and operational efficiency.
Why Choose ABXING Stadium Displays?
Professional sports venue expertise
Customizable solutions for different stadium layouts
Enhanced safety features for athlete protection
Reduced maintenance costs with easy service access
Energy-efficient operation for cost savings
International quality standards compliance
As a professional LED display manufacturer, ABXING provides comprehensive stadium solutions that combine technical excellence with practical functionality, ensuring your sports venue delivers an outstanding visual experience for both live audiences and broadcast viewers.
ABXING SD 960 Series Stadium Perimeter LED Display Technical Specifications
| Pixel Pitch (mm) | P2.5 | P3.076 | P4 | P5 | P6.667 | P8 | P10 |
| Model | ABXINGSD 2.5-16SO | ABXINGSD 3.076-13SO | ABXINGSD 4-10SO | ABXINGSD 5-8SO | ABXINGSD 6.667-6SO | ABXINGSD 8-5SO | ABXINGSD 10-2SO |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 160,000 | 105,625 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| Module Resolution (Pixel) | 128x64 | 104x52 | 80x40 | 64x32 | 144x72 | 40x20 | 32x16 |
| Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Driving Mode (Duty) | 1/16 | 1/13 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Weight (KG) | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Brightness (CD/㎡) | 5000-5500 | 5000-5500 | 5000-5500 | 5000-5500 | 5000-5500 | 5000-5500 | 6500-10000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 | 720 | 720 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Maintenance method | Rear | Rear | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front |
| Soft face mask | NO | NO | NO | yes | yes | yes | yes |
