ABXING SA 960 Series Stadium Perimeter LED Display P4.44 P5.7 P6.667 P8 P10 | FIFA & UEFA LED screen
As a professional LED display manufacturer, ABXING presents the SA 960 Series Stadium Perimeter LED Display – engineered to meet the rigorous standards of international sports venues. This professional stadium LED solution combines advanced protection technology with energy-efficient performance, delivering exceptional visibility while ensuring athlete safety and audience engagement.
Applicastion: Stadium Surroundings

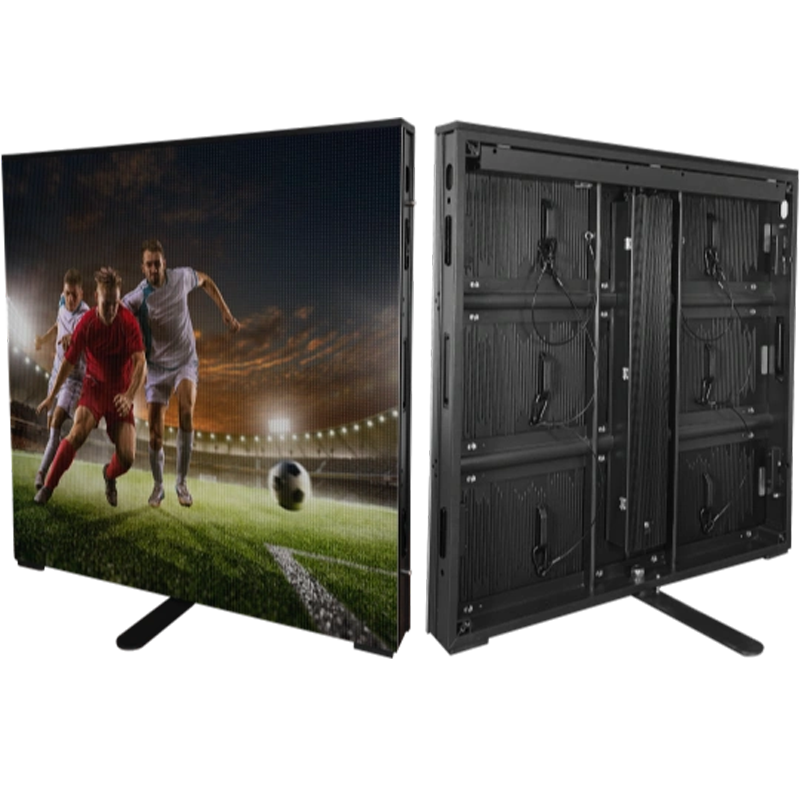

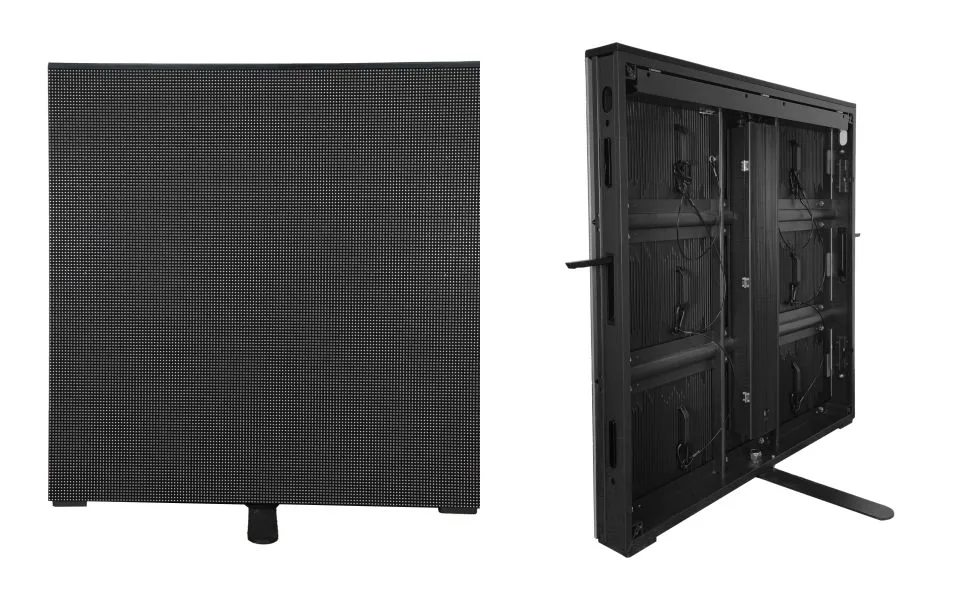

Type Name: ABXING SA 960 Series Stadium Perimeter LED Display
Pixel pitch:P10mm,P8mm,P6.667mm,P5.7mm,P4.44mm
Cabinet Size: 960*960mm
Feature: easy to assemble, high resolution, high refresh rate,
energy saving ,Front /Rear Service,
As a professional LED display manufacturer, ABXING presents the SA 960 Series Stadium Perimeter LED Display – engineered to meet the rigorous standards of international sports venues. This professional stadium LED solution combines advanced protection technology with energy-efficient performance, delivering exceptional visibility while ensuring athlete safety and audience engagement.
Professional Sports Venue Certification
The ABXING SA 960 Series complies with FIFA and UEFA requirements for stadium perimeter advertising systems. Each display undergoes rigorous testing to ensure reliable performance during high-profile sporting events, providing venue operators with trusted digital signage solutions for international competitions.

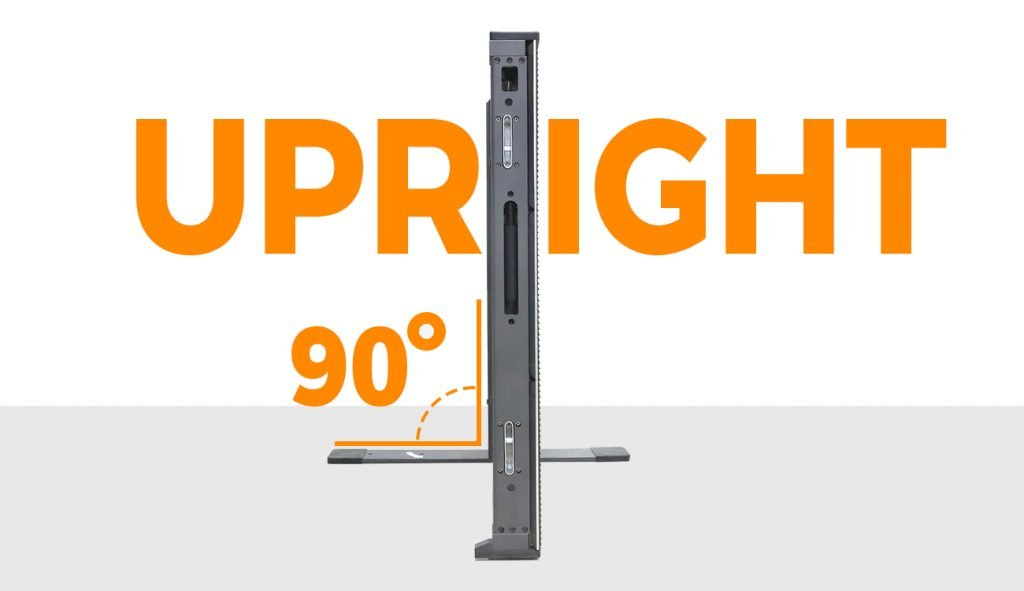

90-Degree Upright Viewing Optimization

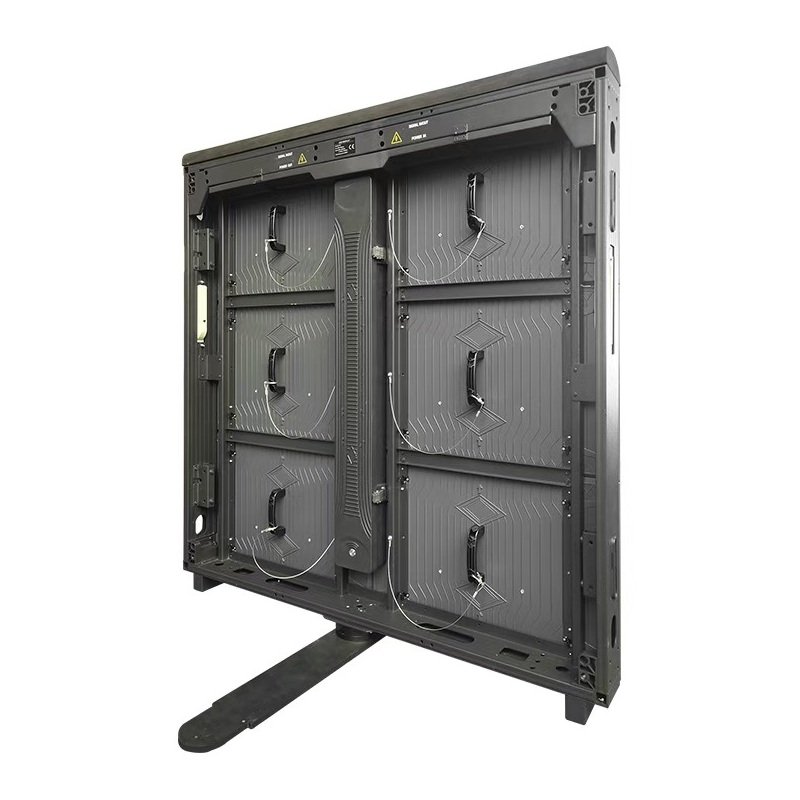

Specifically designed for optimal spectator sightlines, our stadium LED displays feature a fixed 90-degree upright support frame. This engineering ensures perfect viewing angles from all stadium seats, maintaining clear visibility of advertising content and game information throughout the venue.
Advanced Safety & Protection Systems

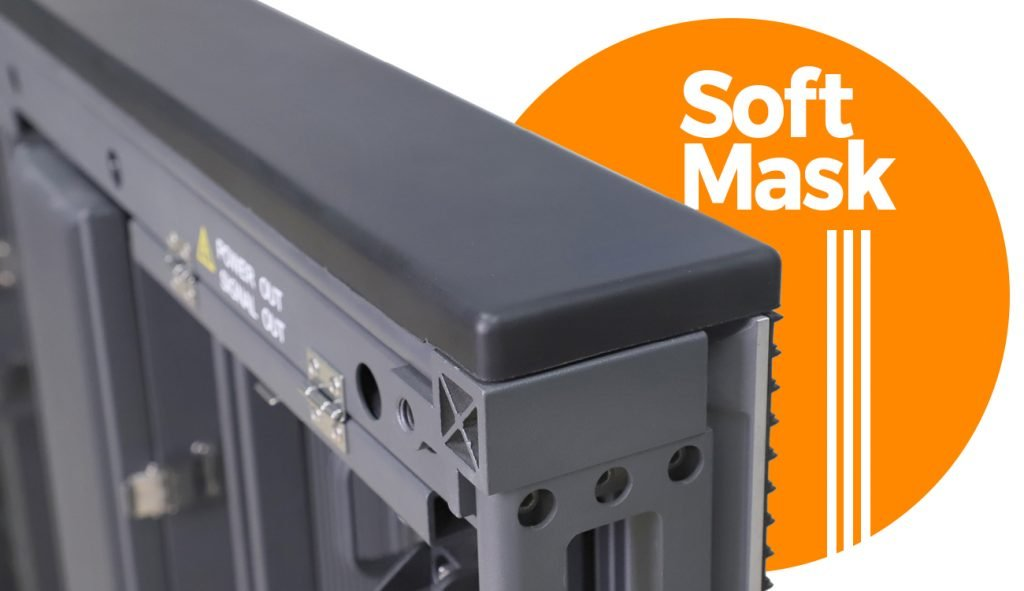

Soft Mask Protection Technology: Specially developed cushioning materials protect both athletes and display surfaces during physical contact
Emergency Passage Design: Quickly fold display sections to create safe evacuation routes during stadium emergencies
Seamless Corner Integration: Innovative foldable design enables perfect corner splicing around stadium curves

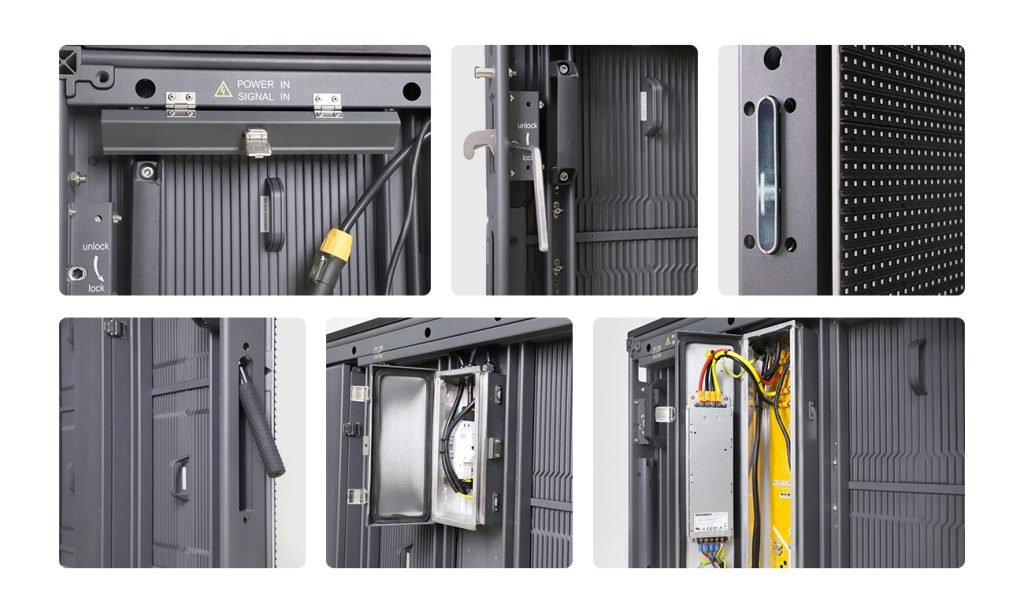

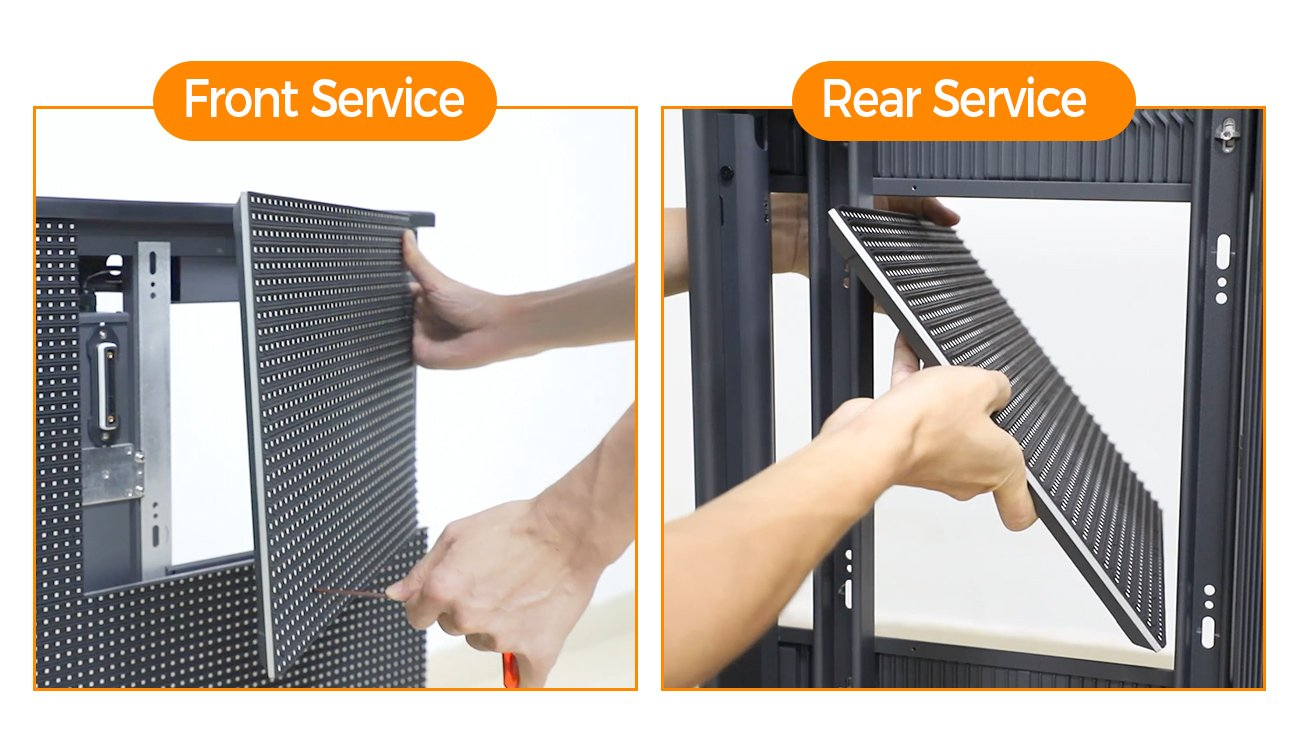

Dual-Access Maintenance Efficiency
Reduce operational downtime with our revolutionary front and rear service access. LED panels can be quickly assembled or disassembled from either side, significantly cutting maintenance time and costs while ensuring continuous operation during critical events.
Energy-Optimized Aluminum Construction
480×320mm Aluminum Panels: Durable aluminum chassis provides superior heat dissipation and extended lifespan
Tool-Free Installation: Edge-lock mechanism enables rapid panel replacement without screws
Fully Sealed Protection: Complete environmental sealing safeguards internal components
40% Reduced Power Consumption: Advanced thermal management lowers operating costs
Innovative Structural Engineering

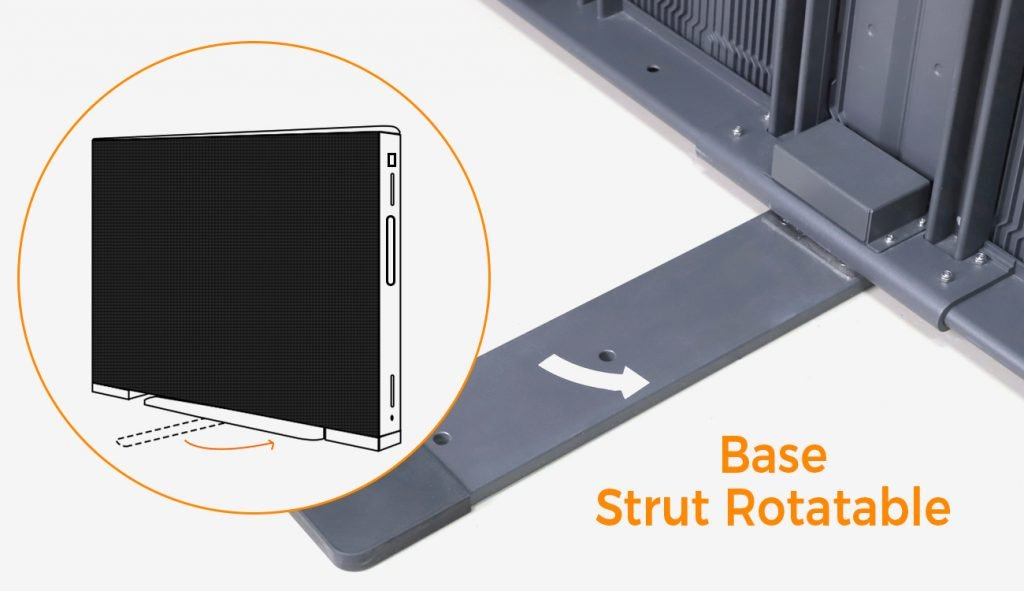

Rotatable Support Framework: Hide support structures when not in use for cleaner venue aesthetics
Compact Cabinet Design: Streamlined construction enables gap-free installation
Integrated Handling System: Ergonomic handles facilitate easy cabinet positioning
Rapid Deployment System: Quick-connect components reduce installation time
Custom Stadium Solutions
ABXING provides tailored LED display configurations for various sporting venues:
Soccer/Football Stadiums
Athletics Tracks
Multi-Purpose Sports Arenas
Training Facilities
Olympic-Level Venues
Technical Advantages for Venue Operators
Ultra-low heat generation during extended operation
Reduced total cost of ownership through energy efficiency
Minimal maintenance requirements with dual-service access
Weather-resistant construction for outdoor stadium use
High brightness levels for daytime visibility
Wide viewing angles for comprehensive coverage
The ABXING SA 960 Series represents the pinnacle of stadium perimeter display technology, combining athlete safety features with superior visual performance. As your dedicated LED display factory, we provide custom solutions that meet the specific requirements of international sports venues, ensuring reliable operation during the world’s most watched sporting events.
ABXING SA 960 Series Stadium Perimeter LED Display Technical Specifications
| Pixel Pitch (mm) | P4.4 | P5.7 | P6.667 | P8 | P10 |
| Model | ABXINGSA 4-10SO | ABXINGSA 5-8SO | ABXINGSA 6.667-6SO | ABXINGSA 8-5SO | ABXINGSA 10-2SO |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Density (Pixels/㎡) | 51,529 | 30,625 | 22,500 | 15,625 | 10,000 |
| Module Resolution (Pixel) | 109x72 | 96x64 | 72x48 | 60x40 | 48x32 |
| Module Size (mm) | 480x320 | 480x320 | 480x320 | 480x320 | 480x320 |
| Driving Mode (Duty) | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Weight (KG) | 26 | 26 | 26 | 26 | 26 |
| Brightness (CD/㎡) | 6000 | 6000 | 6000 | 6000 | 6500-10000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Maintenance method | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front |
| Soft face mask | NO | NO | NO | yes | NO |
