ABXING SC 1600mm Series Stadium Perimeter LED Display Screen | Professional Sports Venue Solution

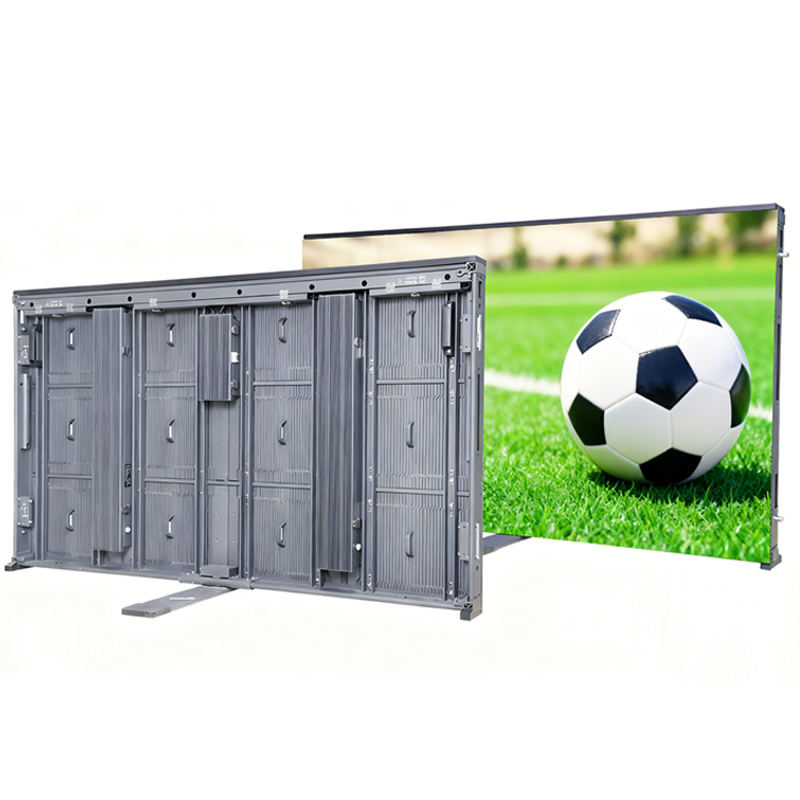

ABXING SC 1600mm Series represents the pinnacle of stadium perimeter LED technology, engineered specifically for professional sports venues. With its 1600×960mm standardized cabinet dimensions and ultra-thin 104mm profile, this LED perimeter display delivers exceptional visibility for advertising, live scores, and game statistics across any stadium environment.
Applicastion: Stadium Surroundings
Type Name: ABXING SD 1600 Series Stadium Perimeter LED Display
Pixel pitch:P10mm,P8mm,P6.667mm,P5mm,P4mm,
Cabinet Size: 1600*900mm
Feature: easy to assemble, high resolution, high refresh rate,
energy saving ,Front /Rear Service,
ABXING SC 1600mm Series represents the pinnacle of stadium perimeter LED technology, engineered specifically for professional sports venues. With its 1600×960mm standardized cabinet dimensions and ultra-thin 104mm profile, this LED perimeter display delivers exceptional visibility for advertising, live scores, and game statistics across any stadium environment.
Advanced Visual Performance Specifications
High-definition display with refresh rates ≥3840Hz
Brightness levels reaching 6,000-7,000 nits for perfect sunlight visibility
14-22 bits grayscale depth for superior color accuracy
160° ultra-wide viewing angle covering all spectator areas
Multiple pixel pitch options: P6.6, P8, P10 available
Professional Sports Certification & Compliance
Our stadium LED displays meet rigorous international standards including:
UEFA technical requirements for professional football venues
CE (EMC & LVD), RoHS, FCC, CB, ISO certifications
KC, PSE, and other global safety standards
FIFA-compliant for international tournament use
Enhanced Athlete Safety Protection System

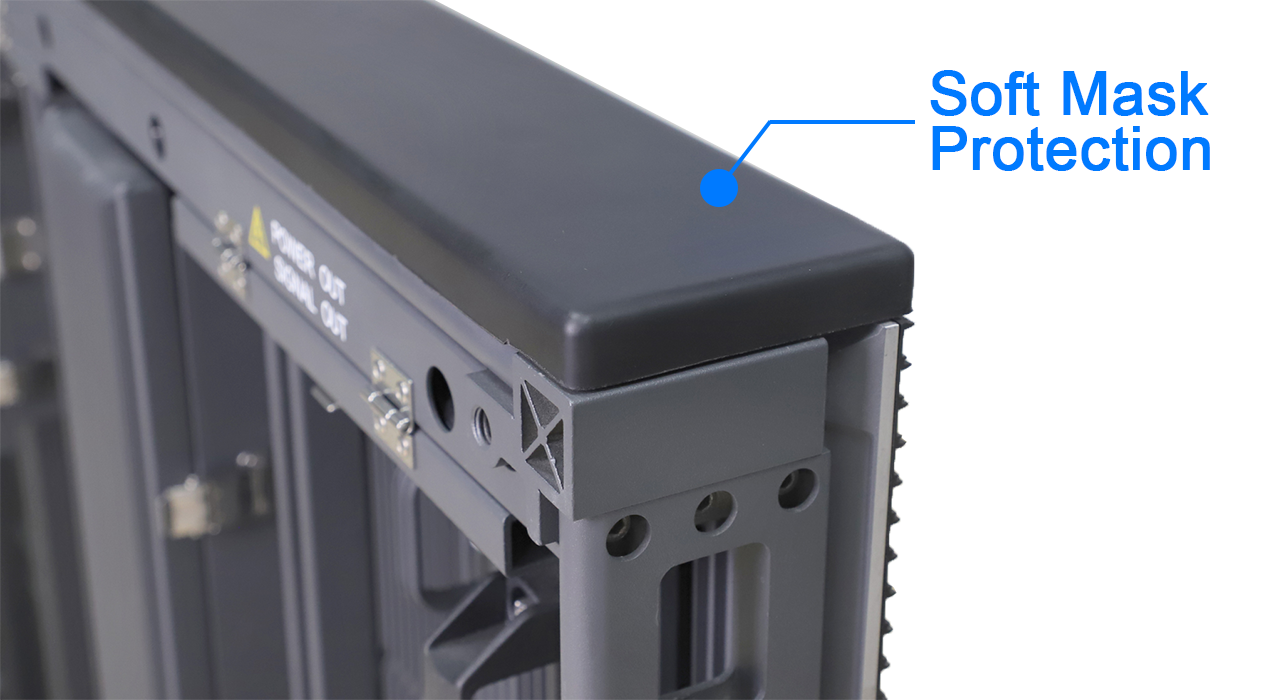

Specialized soft plastic mask design prevents player injuries
Excellent anti-collision capability withstands ball impacts

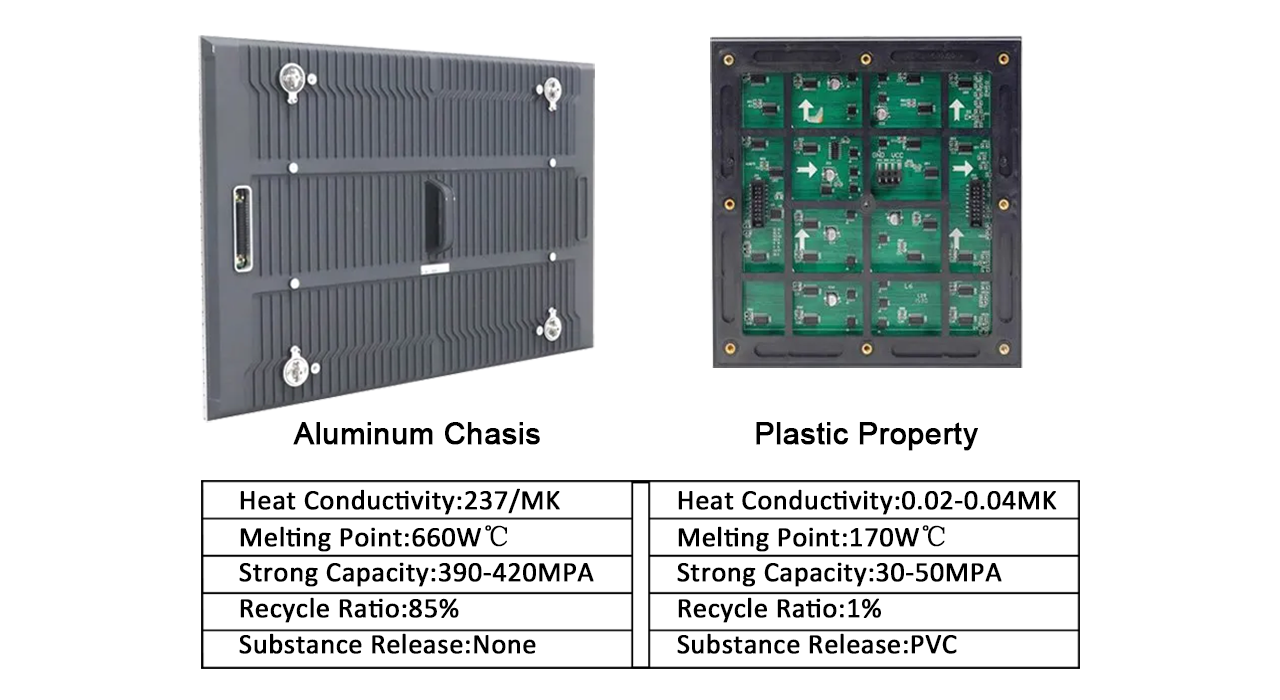

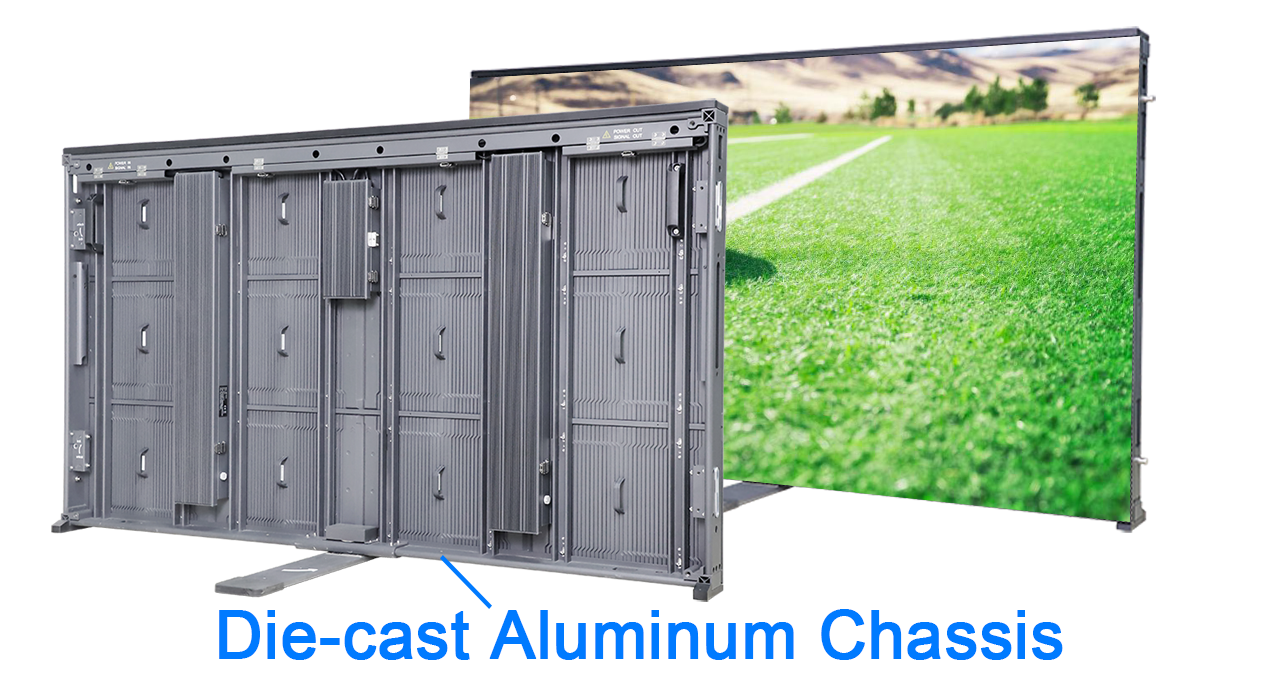

Aluminum alloy construction with private mold processing
Protective cushioning maintains display integrity during contact
Flexible Installation & Viewing Optimization

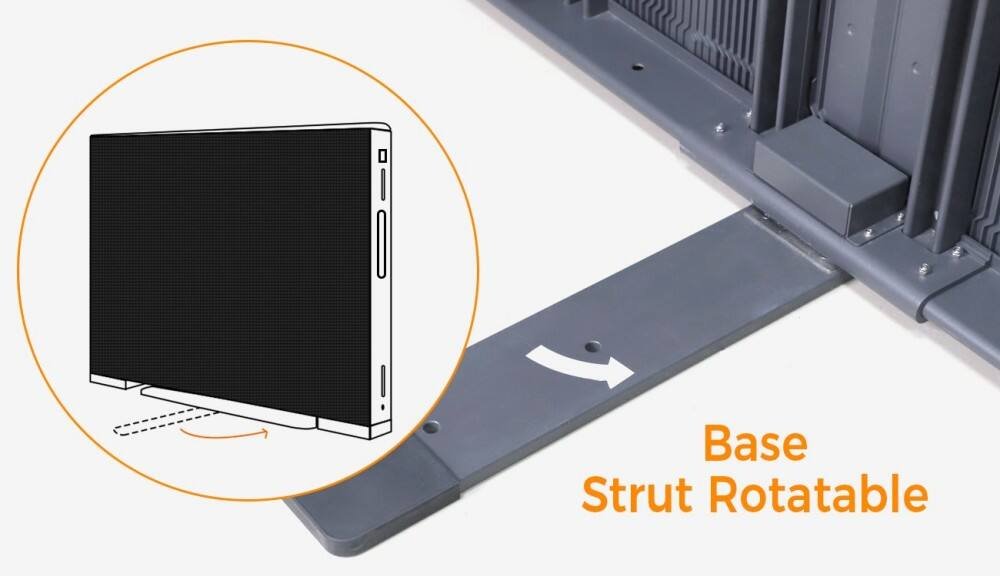

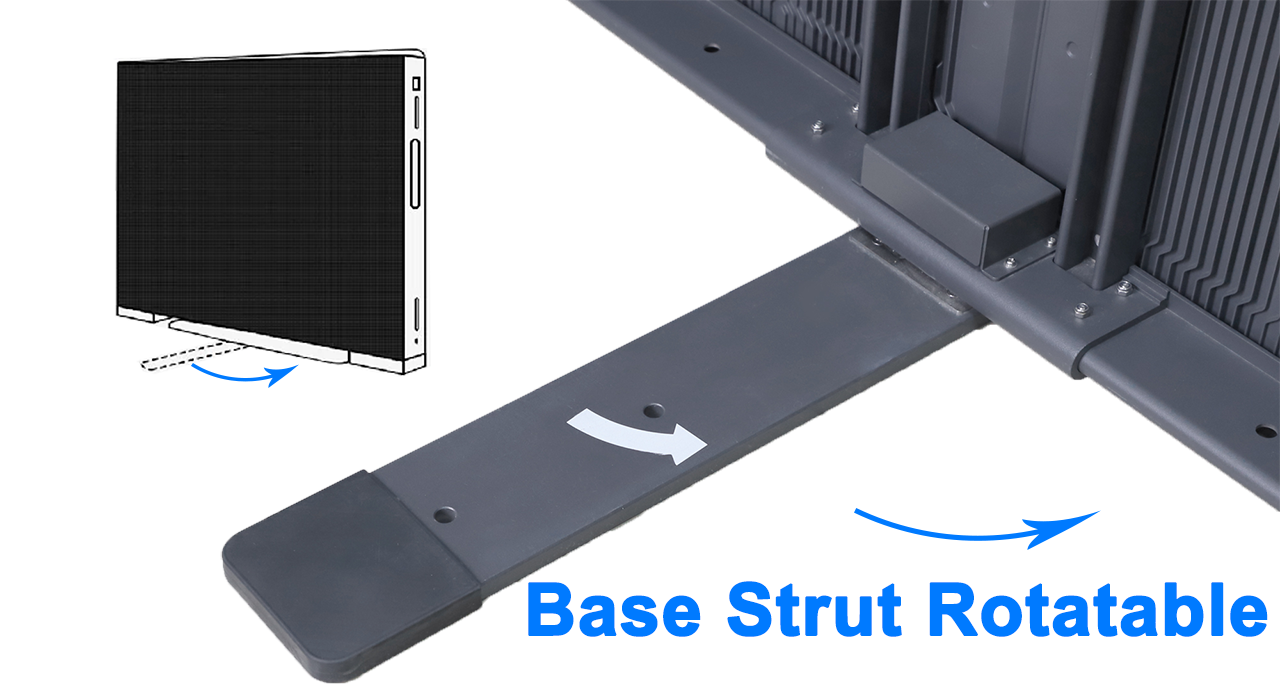

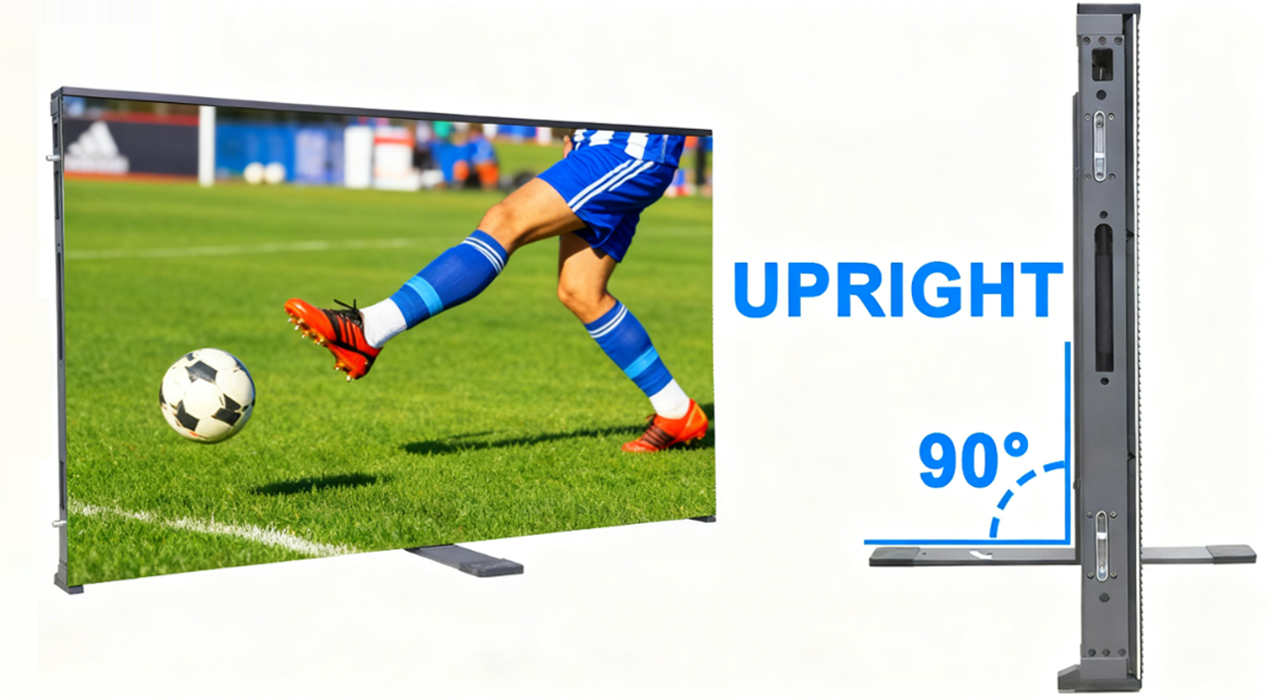

0-90° fully adjustable bracket system
Customizable viewing angles for different venue configurations
7mm automatic positioning tolerance for easy assembly
Upper and lower positioning guide plates with adjustment screws
Comprehensive Protection & Durability

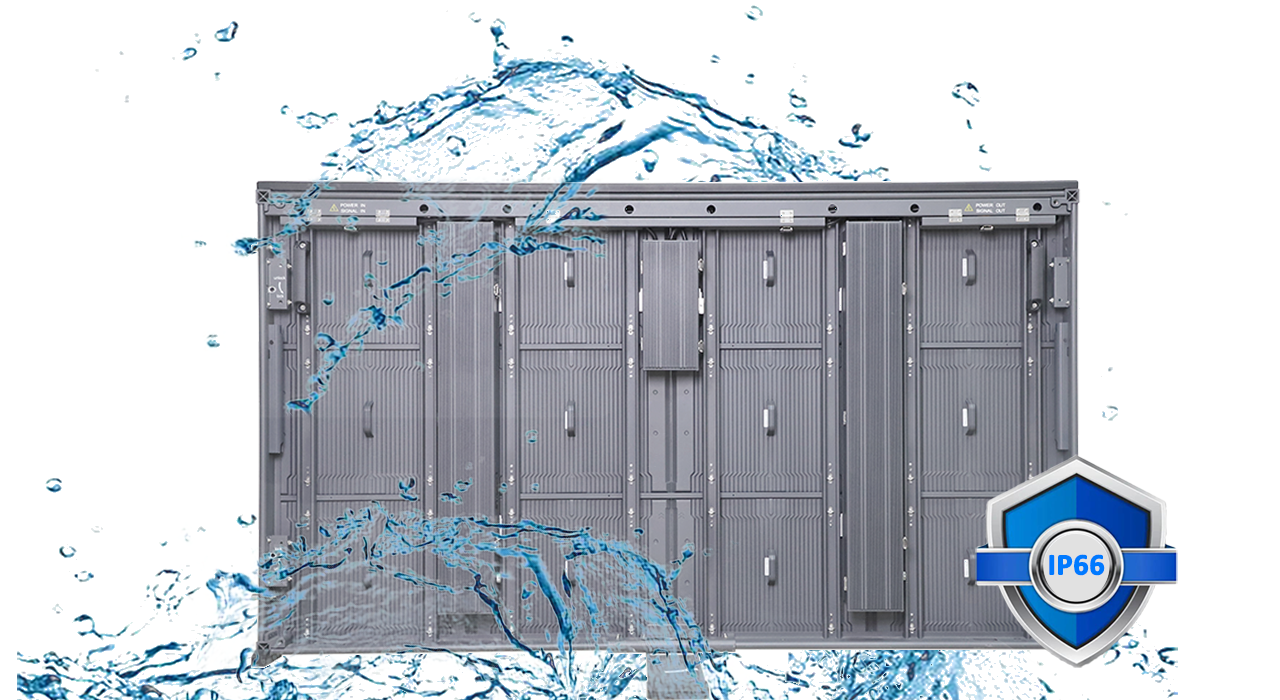

Front IP65 / Rear IP54 waterproof ratings
Full weatherproof operation in various conditions
Impact-resistant construction for sports environments
Light metal alloy material for strength and longevity

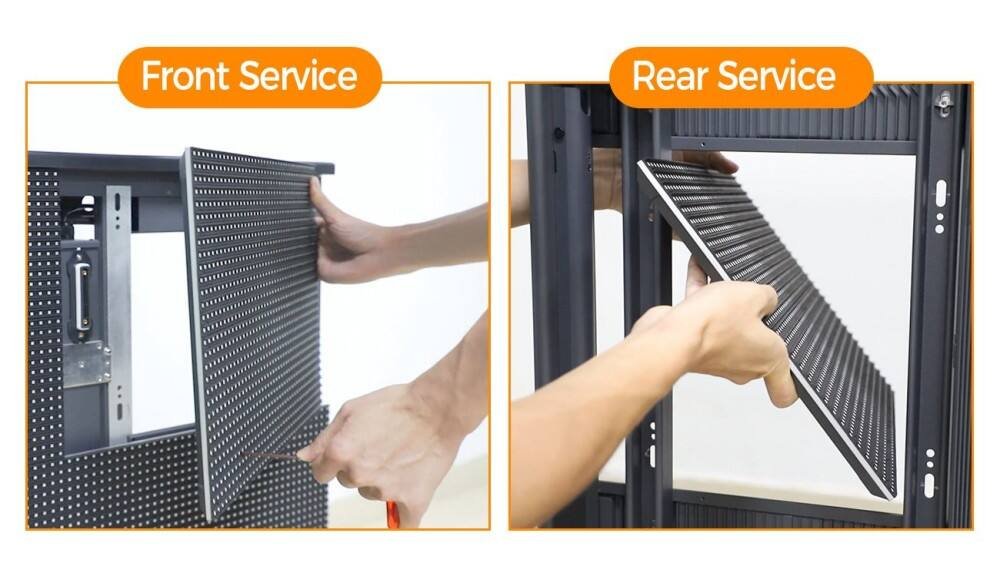

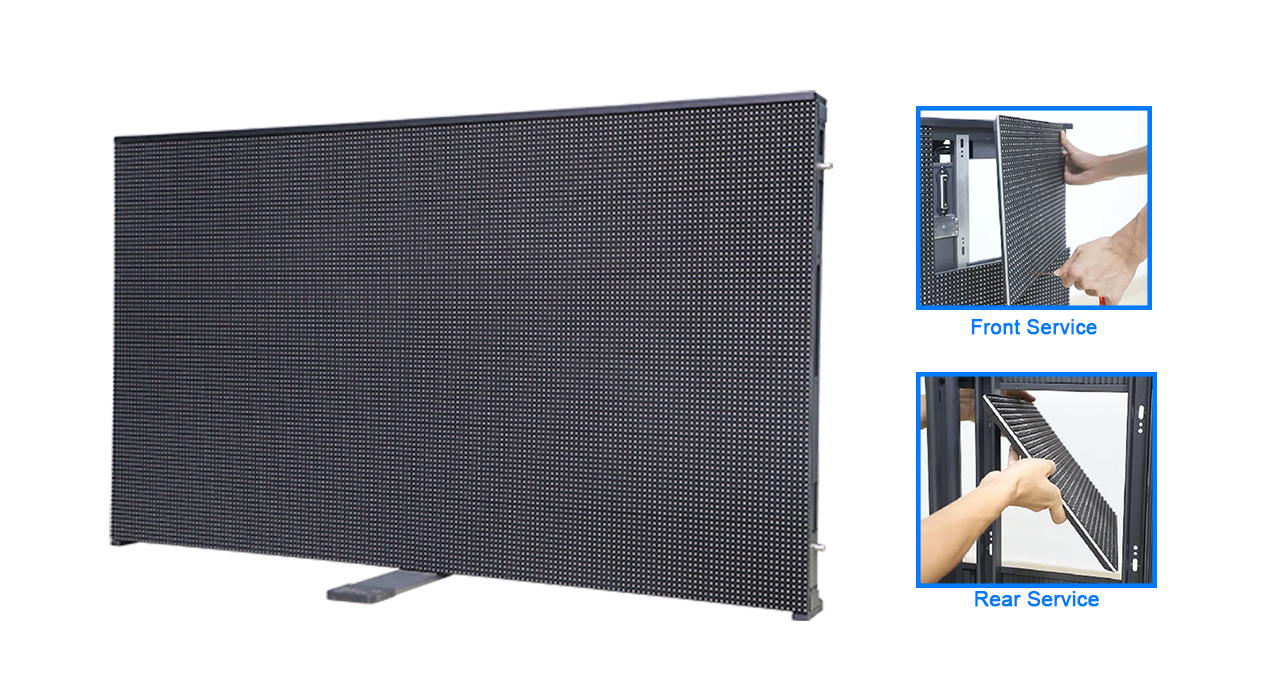

Dual Maintenance Access System

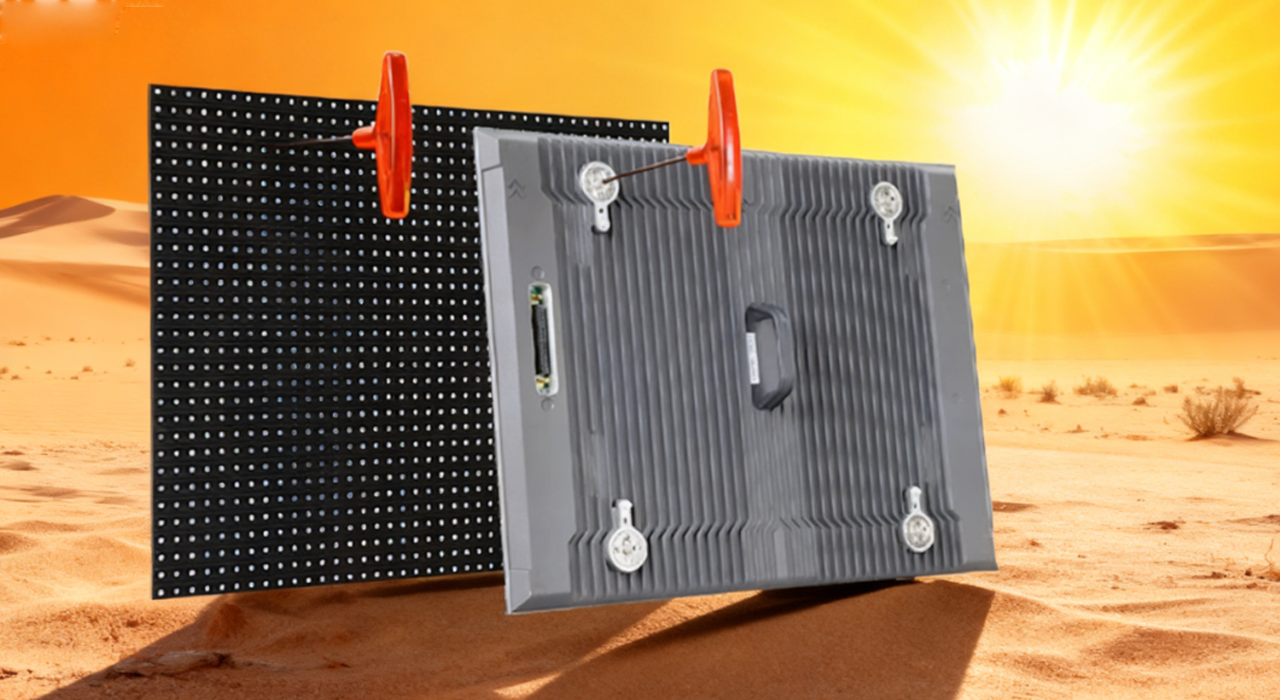

Front and rear service access reduces maintenance time
Quick module replacement from either side
Minimal downtime during critical events
Tool-friendly design for efficient repairs
Seamless Visual Integration
Advanced splicing technology eliminates visible gaps
Continuous display surface across entire perimeter
Perfect alignment between cabinets
Uniform color consistency throughout installation

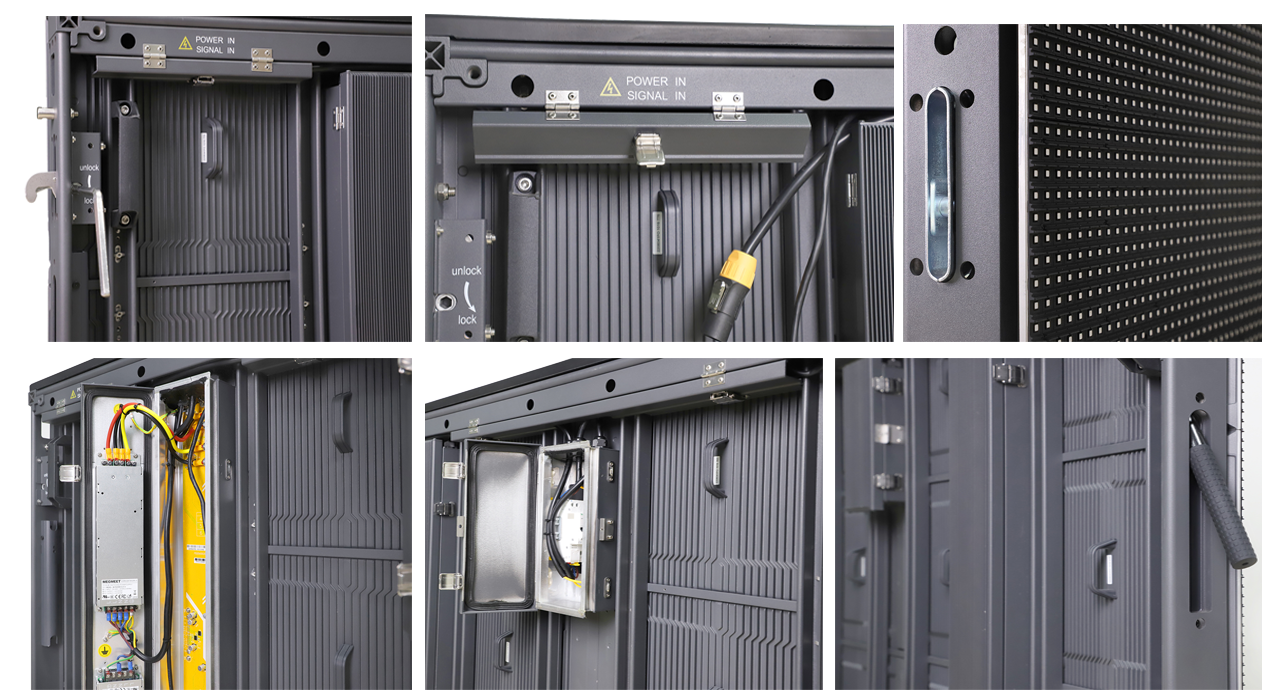

Reliable Power & Signal Redundancy
Dual power supply backup system
Redundant signal data transmission
Optical fiber transmission over extended distances
Uninterrupted operation meeting UEFA requirements
Complete Control System Integration
LED video processor with multiple input options
Advanced control box with sending/receiving cards
Optical fiber system for long-distance signal transmission
Real-time content management capabilities
Ideal Sports Venue Applications
Football stadium perimeter displays
Basketball arena ribbon boards
Olympic venue scoring systems
Motorsport timing and information displays
Multi-purpose sports facility installations
Energy-Efficient Operation
Advanced power management reduces consumption
Superior heat dissipation design
Long-lasting SMD LED technology
Lower operational costs versus traditional displays
The ABXING SC 1600mm Series embodies professional sports venue requirements through its combination of technical excellence, safety features, and reliable performance. As an experienced LED display manufacturer, we provide customized solutions that enhance spectator experiences while meeting the demanding standards of international sports organizations.
ABXING SC1600 Series Stadium Perimeter LED Display Technical Specifications
| Pixel Pitch (mm) | P4.4 | P5.7 | P6.667 | P8 | P10 |
| Model | ABXINGSC 4-10SO | ABXINGSC 5-8SO | ABXINGSC 6.667-6SO | ABXINGSC 8-5SO | ABXINGSC 10-2SO |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Density (Pixels/㎡) | 51,529 | 30,625 | 22,500 | 15,625 | 10,000 |
| Module Resolution (Pixel) | 90x72 | 70x64 | 60x48 | 50x40 | 40x32 |
| Module Size (mm) | 400x320 | 400x320 | 400x320 | 400x320 | 400x320 |
| Driving Mode (Duty) | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | 1600*960 | 1600*960 | 1600*960 | 1600*960 | 1600*960 |
| Cabinet Weight (KG) | 48 | 48 | 48 | 48 | 48 |
| Brightness (CD/㎡) | 6000 | 6000 | 6000 | 6000 | 6500-10000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Maintenance method | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front |
| Soft face mask | NO | NO | NO | yes | NO |
