ABXING RR500 Series Rental LED Display Video Wall – P1.56 P1.95 P2.604 P2.976 P3.91 P4.81 Pixel Pitch – Ultra HD Main Visual, Front & Rear Maintenance, Quick Lock Tool-Free Assembly, Scratch-Resistant Rental LED Panel
-High-Precision Aluminum Cabinet
-Lightweight and Fast Installation Design
–IP31/65 Front /Rear Protection
-Energy-Saving Design
–Advanced Heat Dissipation System
-Multiple Installation Options
High-Efficiency Rental LED Display System
ABXING RR500 Series Rental LED Display delivers professional-grade performance with exceptional setup efficiency. Designed specifically for the demanding needs of event production companies, this 1000mm cabinet system combines rapid deployment capabilities with robust construction, ensuring reliable operation for both indoor and outdoor applications.
Rapid Assembly Technology

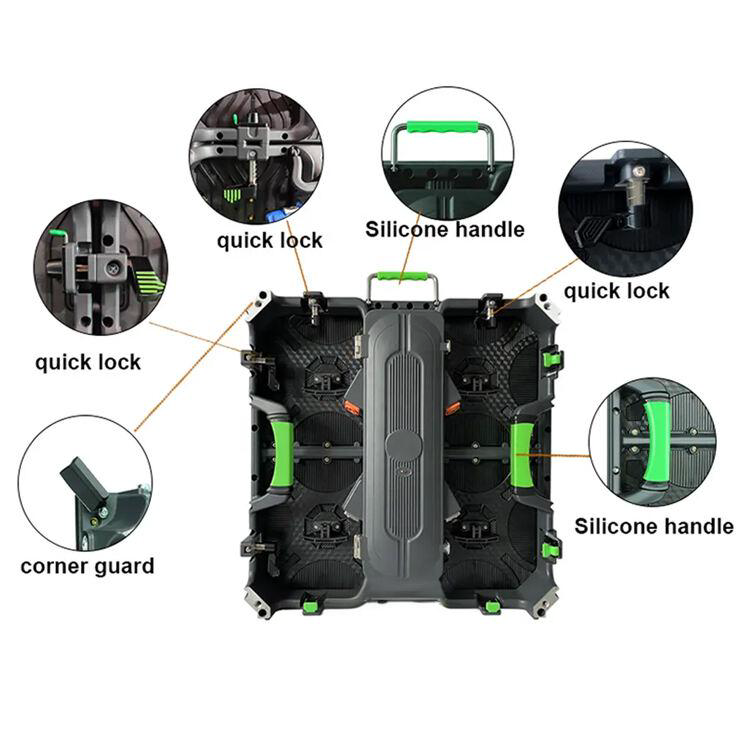

Dual quick-lock mechanisms on left/right sides ensure faster installation
Enhanced screen flatness through precision locking system
Keyhole mounting points at cabinet top streamline hanging applications
Integrated anti-collision feet protect LED modules during handling
Advanced Curved Display Capability

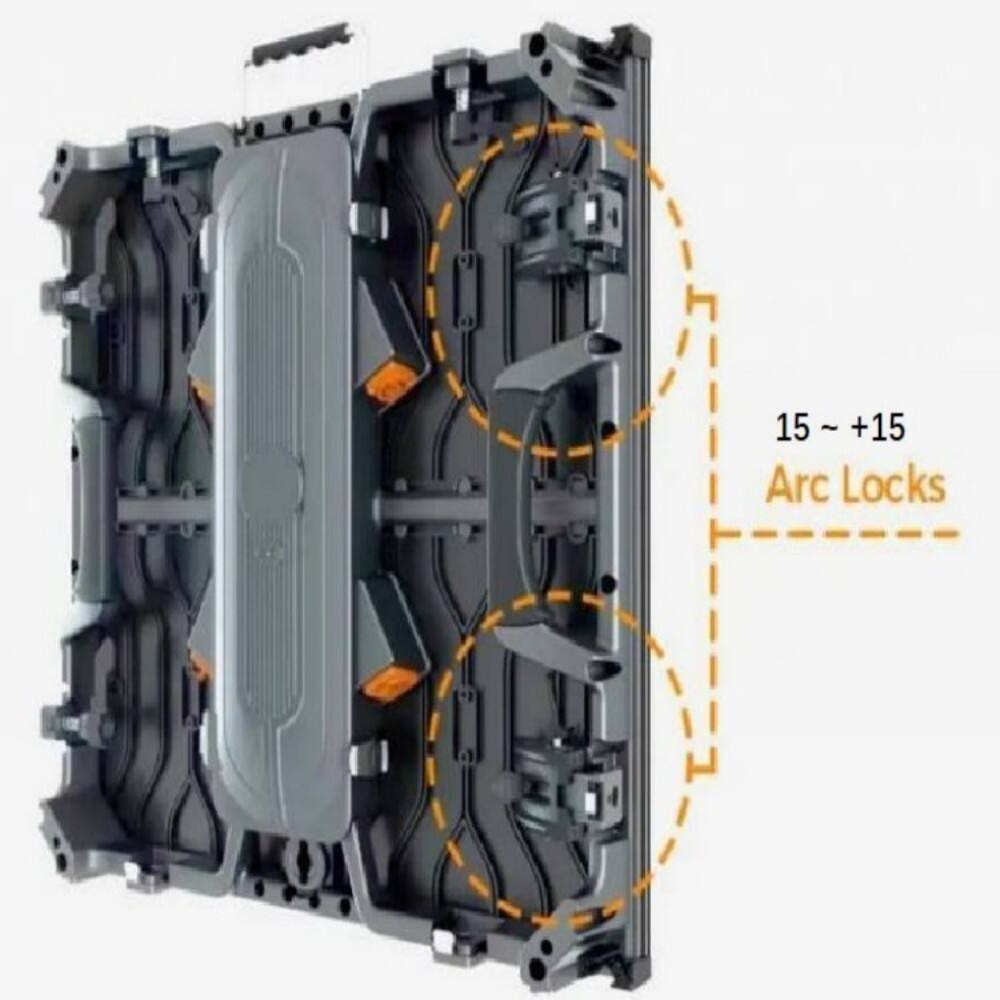

High-precision curve lock system enables seamless installations
Rotational adjustment mechanism allows precise curvature control
User-friendly design simplifies curved screen configuration
Quick-adjust capability for varying radius requirements
Professional Protection Features

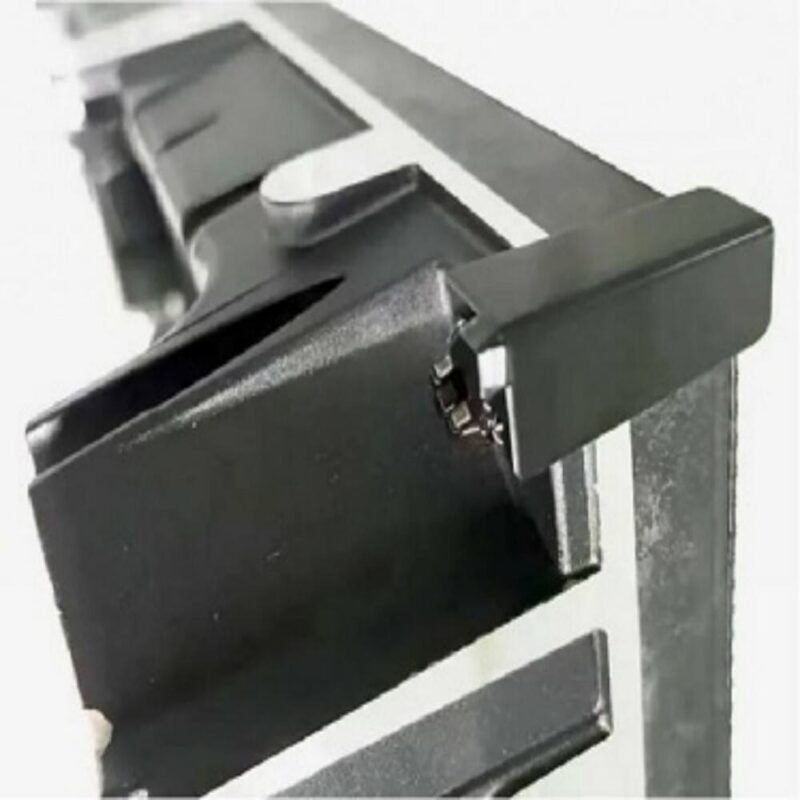

Four-corner protective guards on each cabinet prevent impact damage
Enhanced security during transportation and setup
Foldable design optimizes storage and handling efficiency
Damage-resistant construction extends product lifespan
Versatile Installation Options
Multi-directional stacking capability (RR500 & RR1000 Series compatible)
Flexible curved installation configurations

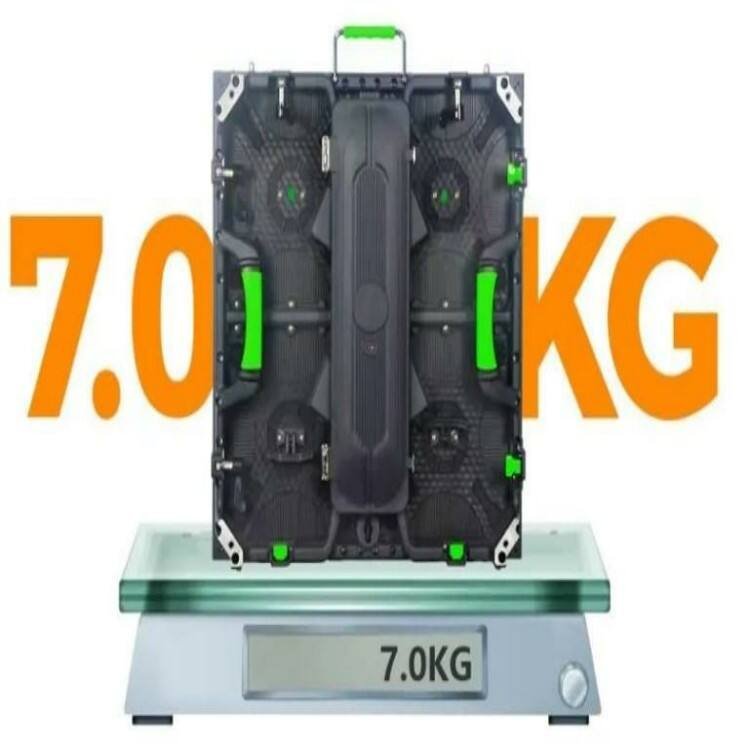

Lightweight 7kg cabinet enables single-person operation
Quick disassembly for efficient event turnover
Superior Environmental Protection

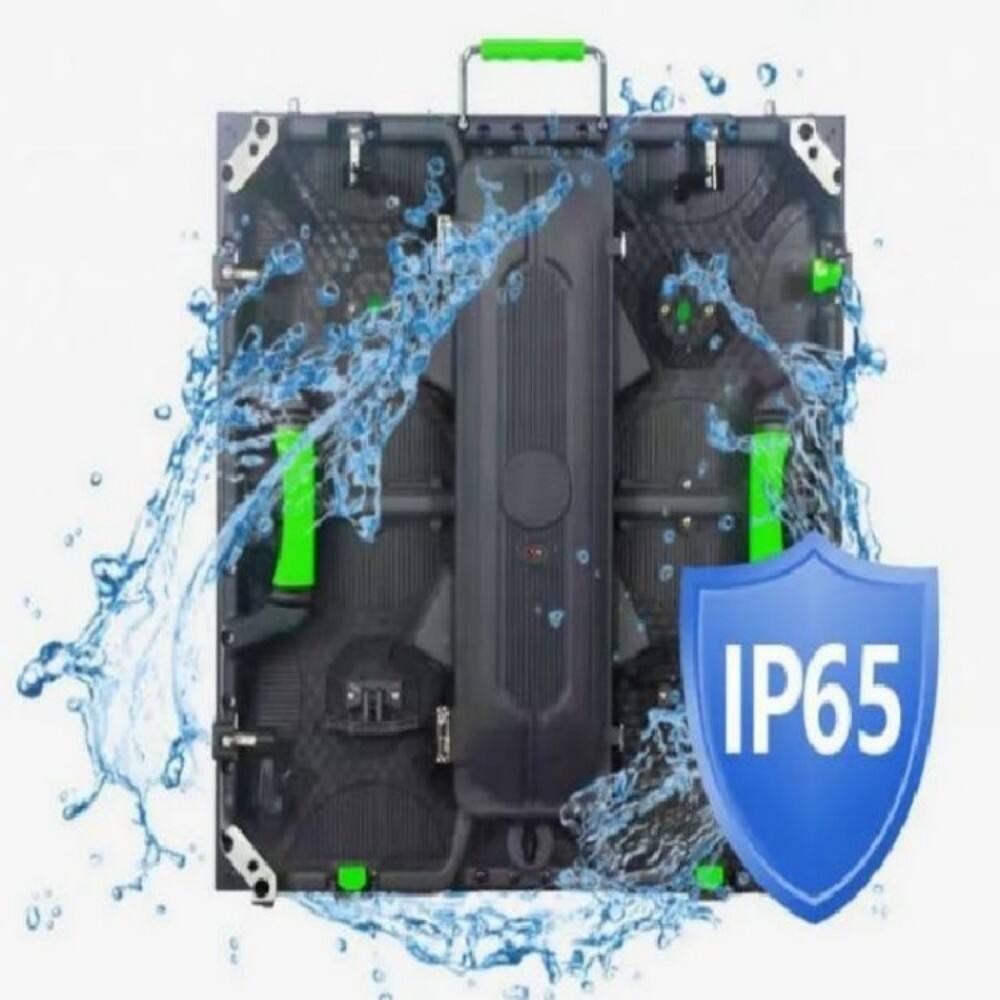

IP65 rated for complete dust and water resistance
Die-cast aluminum construction resists corrosion
Weather-proof performance for outdoor event applications
Durable components withstand challenging environmental conditions
Exceptional Visual Performance
Seamless splicing technology creates gap-free viewing experience
High-precision manufacturing ensures perfect image alignment

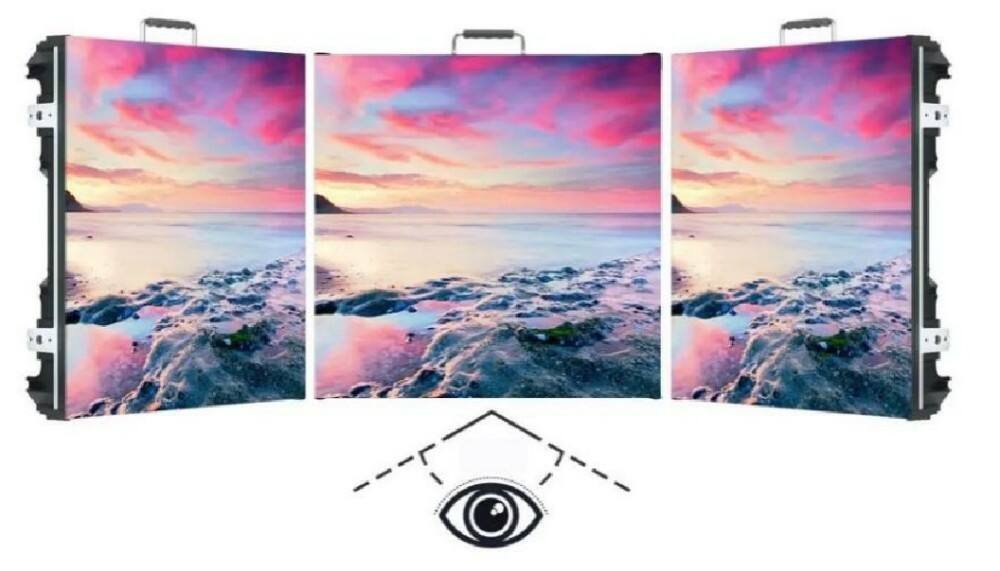

140-degree wide viewing angle (horizontal & vertical)
Ultra-wide perspective maximizes audience coverage
Optimized Rental Features
Lightweight yet rigid cabinet structure (7kg per panel)
Front and rear maintenance accessibility
Modular design simplifies component replacement
Compatible with existing rental inventory systems
Professional Event Applications
Concert tours and music festival installations
Corporate event backdrops and brand displays
Exhibition and trade show booth construction
Outdoor festival and temporary venue setups
Broadcast production and studio environment applications
Sporting event and arena installations
Technical Advantages for Rental Companies
Reduced labor costs through faster setup times
Lower maintenance requirements with protective design
Enhanced transportation safety with corner protection
Improved storage efficiency with stackable design
Extended product lifecycle through durable construction
The ABXING RR500 Series represents the evolution of rental display technology, focusing on the practical needs of event professionals. By combining quick-deployment features with professional visual performance, this series ensures your events achieve stunning visual impact while maximizing operational efficiency.
Why Event Professionals Choose RR500 Series
50% faster setup with dual quick-lock system
Reduced damage rates with comprehensive protection
Flexible configuration options for creative designs
Lightweight design decreases shipping costs
Weather-resistant performance for outdoor reliability
As your trusted LED display manufacturing partner, ABXING provides rental-specific solutions that balance technical excellence with practical event requirements. The RR500 Series delivers the reliability, ease of use, and visual quality that professional rental companies need to succeed in today’s competitive event production market.
Additional Configuration Options
Multiple pixel pitch selections available
Custom flight case solutions
Professional technical support and training
Flexible quantity options for various project scales
Outdoor 500x500mm ABXING RR Series Rental LED Display Series Technical Parameters
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P3.91 | P4.81 |
| Model | ABXING RR OP2.97-24S | ABXING RR OP2.97-21S | ABXING RR OP3.91-16S | ABXING RR OP3.91-8S | ABXING RR OP4.81-13S |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921(black) |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 65,536 | 65,536 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 | 64x64 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/8 | 1/13 |
| Cabinet Size (mm) | 500x500 | 500x500 | 500x500 | 500x500 | 500x500 |
| Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 6000 | 4000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |

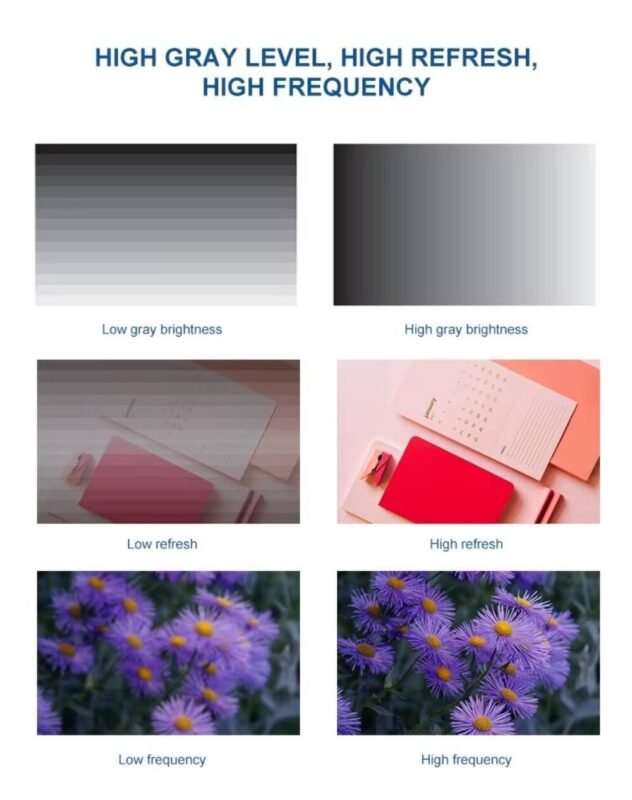

| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Maintenance method | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front |
Indoor 500x500mm ABXING RR Series Rental LED Display Series Technical Parameters
| Pixel Pitch (mm) | P1.56(GOB) | P1.95(GOB) | P2.6(GOB) | P2.97 | P3.91 |
| Model | ABXING RR IP1.56-40S | ABXING RR IP1.95-32S | ABXING RR IP2.6-32S | ABXING RR IP2.97-28S | ABXING RR IP2.97-16S |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 147,928 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 160x160 | 128x128 | 96x96 | 84x84 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/32 | 1/28 | 1/16 |
| Cabinet Size (mm) | 500x500 | 500x500 | 500x500 | 500x500 | 500x500 |
| Cabinet Weight (KG) | 7 | 7 | 7 | 7 | 7 |
| Brightness (CD/㎡) | 750 | 800 | 750 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 576 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 192 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
| Maintenance method | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front |
