ABXING RR Series Professional Stage Rental LED Display Panel P1.56 P1.95 P2.604 P2.976 P3.91 P4.81 Die‑cast Aluminum Screen with Front & Rear Maintenance
-High-Precision Aluminum Cabinet
-Lightweight and Fast Installation Design
–IP31 Front Protection
-Energy-Saving Design
–Advanced Heat Dissipation System
-Multiple Installation Options
Key Features of the ABXING RR1000 Rental LED Display:

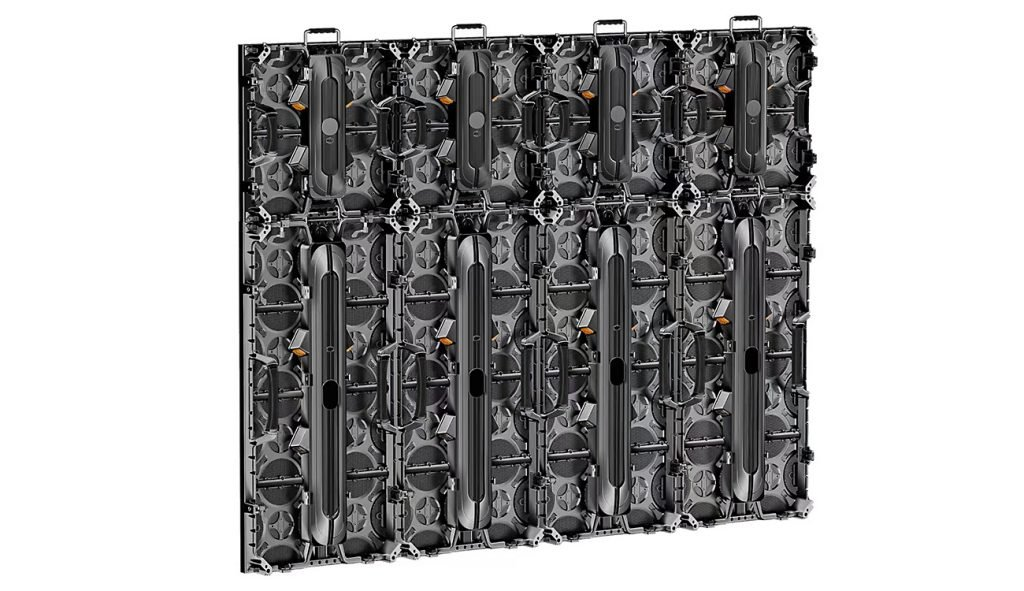

Quick Lock & Fast Assembly
ABXING RR Series cabinets include quick lock mechanisms on both left and right sides, enabling faster installation and improved screen flatness. The rear keyhole design further speeds up assembly, making it a top choice for event rental companies.

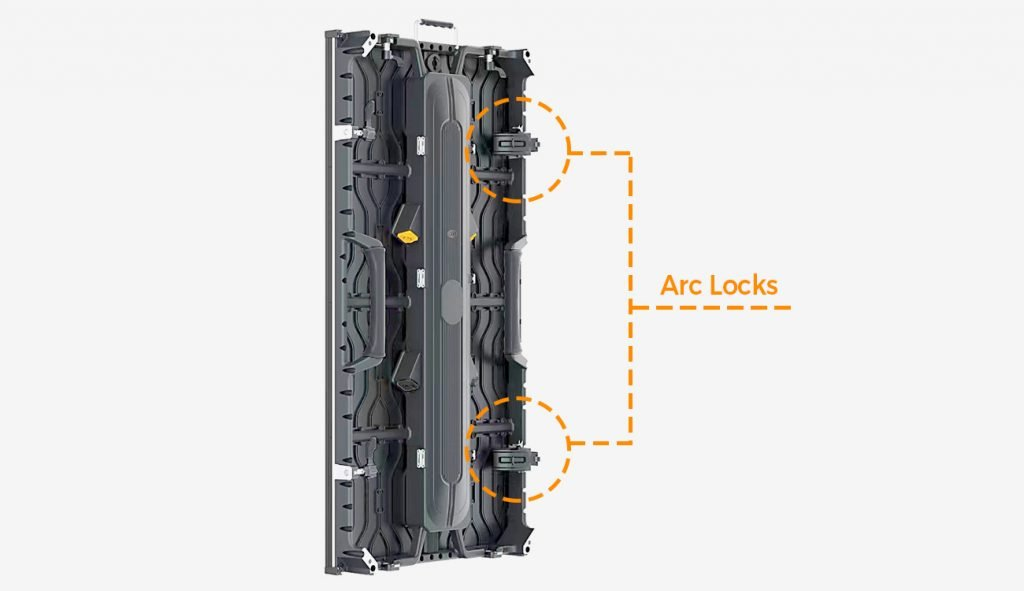

High Precision Curve Lock

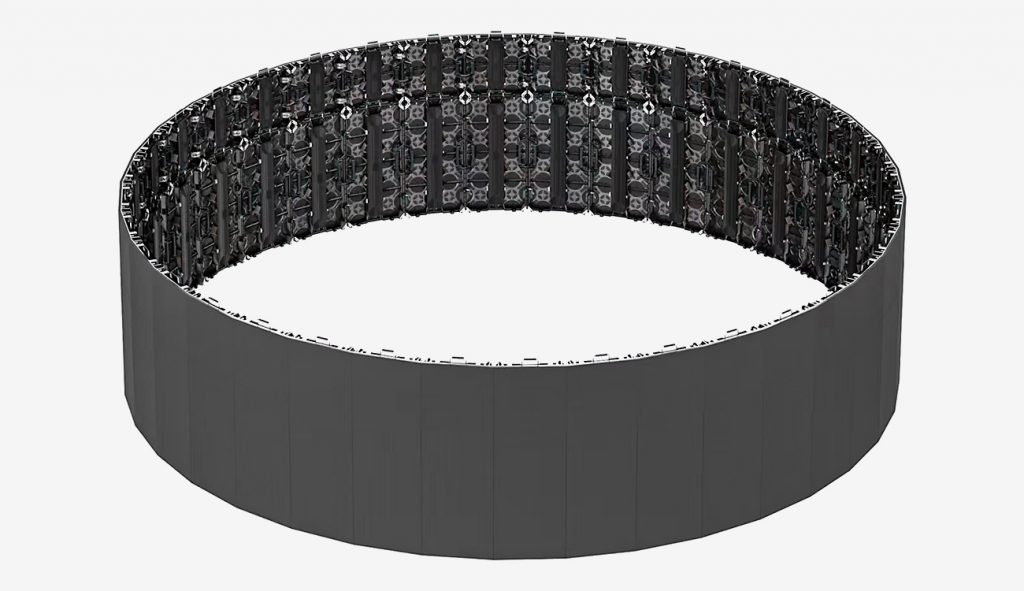

Our advanced curve lock system allows smooth rotational control for accurate curved LED screen adjustments. This innovation solves common issues with older curved locking mechanisms, offering better flexibility for creative stage designs and curved installations.

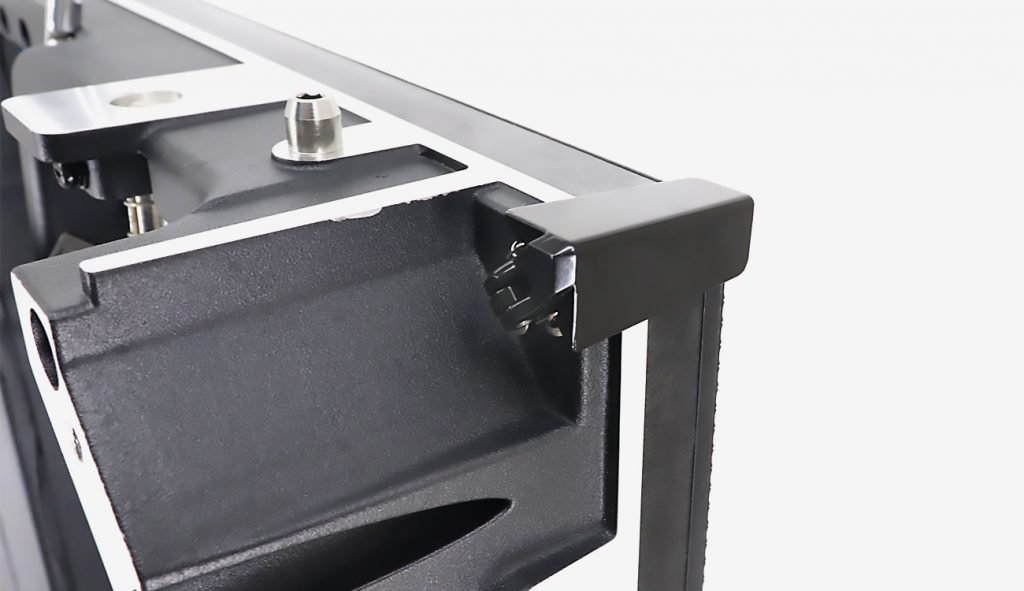

Durable & Secure Transport
Each cabinet comes with corner protectors to shield the LED modules from impact. Anti-collision feet add extra protection during handling and transport. The foldable and stackable design ensures safe and efficient logistics.

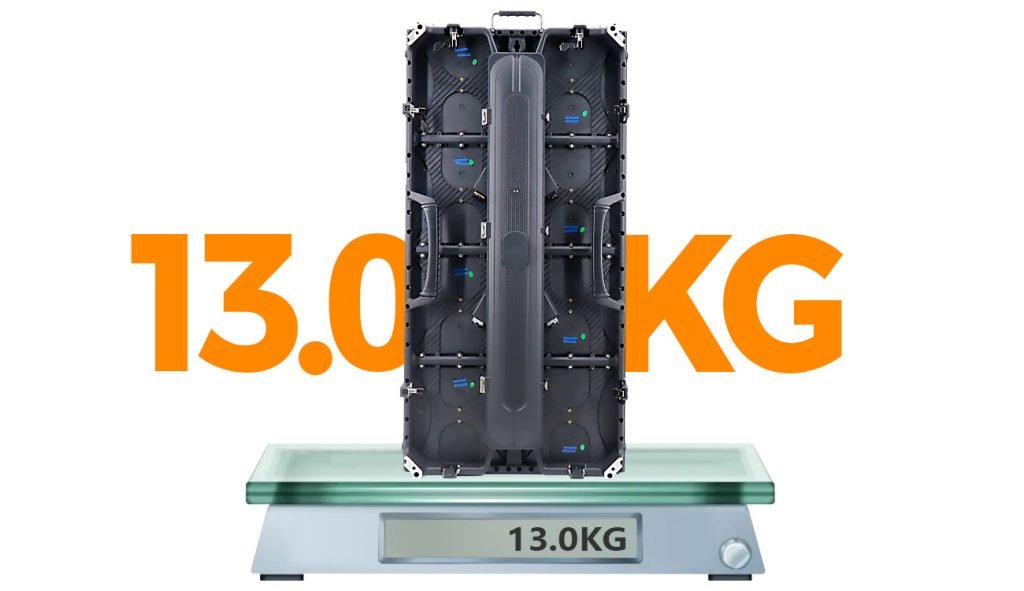

Stackable & Lightweight Design
Both the RR500 and RR1000 series cabinets are fully stackable, saving space and simplifying storage. Weighing only 13kg per panel, the RR1000 is lightweight enough for one-person operation during installation or maintenance.

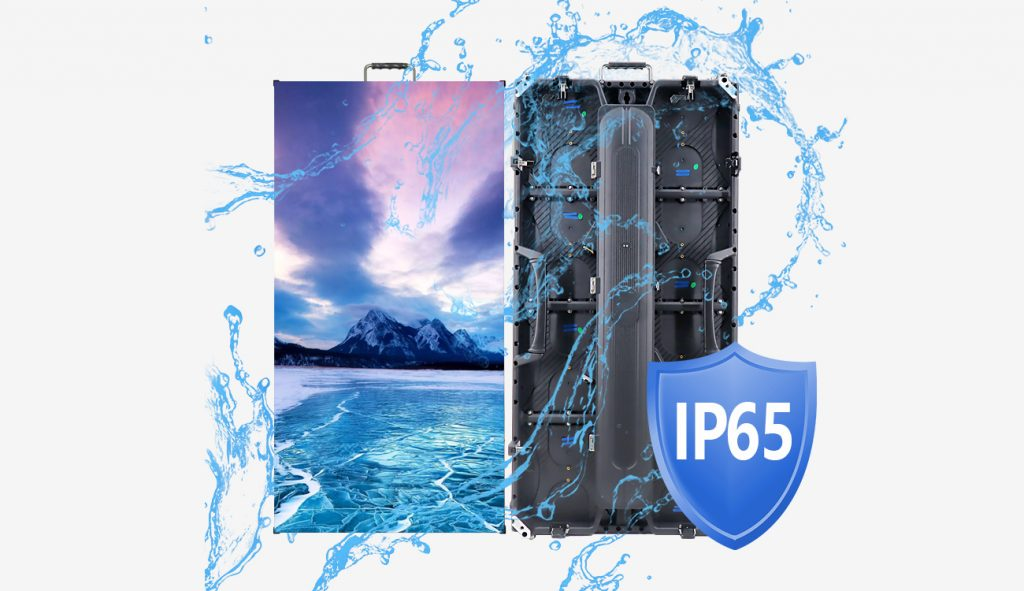

IP65 Rated for Outdoor Use
With an IP65 dustproof and waterproof rating, this outdoor LED display performs reliably in all weather conditions. The die-cast aluminum cabinet offers corrosion resistance, making it a durable rental LED screen for outdoor events.

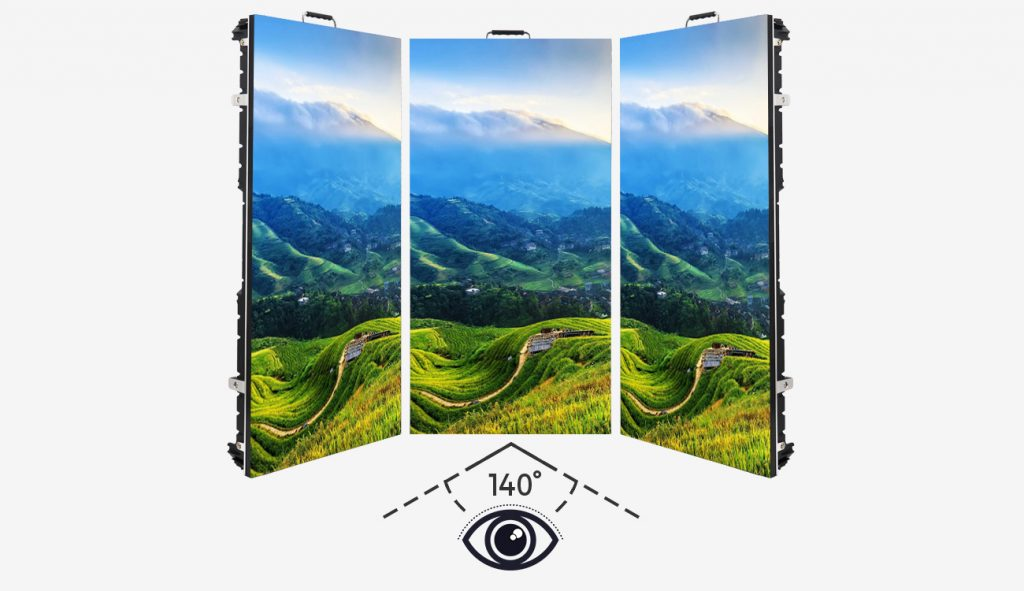

Seamless Splicing & Wide Viewing Angle
Experience seamless video displays with high refresh rates and exceptional color uniformity. A wide 140-degree horizontal and vertical viewing angle ensures clear, natural images from any position—perfect for large audience events.
Why Choose ABXING RR1000 Series?
From rental services to fixed installations, the RR1000 series meets diverse needs with its quick setup, rugged build, and brilliant image quality. Whether you’re planning a curved LED display setup or a large-format rental screen, ABXING delivers reliability and visual impact.
Outdoor 500x1000mm ABXING RR Rental LED Display Series Technical Specifications
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P3.91 | P4.81 |
| Model | ABXINGRR 2.6-24SO | ABXINGRR 2.97-21SO | ABXINGRR 3.91-16SO | ABXINGRR 3.91-8SO | ABXINGRR 4.81-13SO |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 | 64x64 | 52x52 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/8 | 1/13 |
| Cabinet Size (mm) | 500x1000 | 500x1000 | 500x1000 | 500x1000 | 500x1000 |
| Cabinet Weight (KG) | 13 | 13 | 13 | 13 | 13 |
| Brightness (CD/㎡) | 4500 | 4500 | 4500 | 5500 | 4500 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Maintenance method | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front |
indoor 500x1000mm ABXING RR Rental LED Display Series Technical Specifications
| Pixel Pitch (mm) | P1.56(GOB) | P1.95(GOB) | P2.6(GOB) | P2.97 | P3.91 |
| Model | ABXINGRR 1.5-40SI | ABXINGRR 1.9-32SI | ABXINGRR 2.6-32SI | ABXINGRR 2.97-28SI | ABXINGRR 3.91-16SI |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 147,928 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 160x160 | 128x128 | 96x96 | 84x84 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/32 | 1/28 | 1/16 |
| Cabinet Size (mm) | 500x1000 | 500x1000 | 500x1000 | 500x1000 | 500x1000 |
| Cabinet Weight (KG) | 12 | 12 | 12 | 12 | 12 |
| Brightness (CD/㎡) | 750 | 800 | 750 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 576 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 192 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
| Maintenance method | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front |
