ABXING Mobile Trailer LED Display | All-Weather Outdoor Advertising Solution

ABXING’s mobile trailer LED display delivers broadcast-quality visuals in a fully portable, rugged package. Ideal for outdoor advertising, events, and emergency broadcasts, this complete plug-and-play solution includes an integrated power system and heavy-duty trailer built for tough conditions. No permanent installation or external infrastructure is needed—just bring your message to the streets, festivals, or job sites.
Description

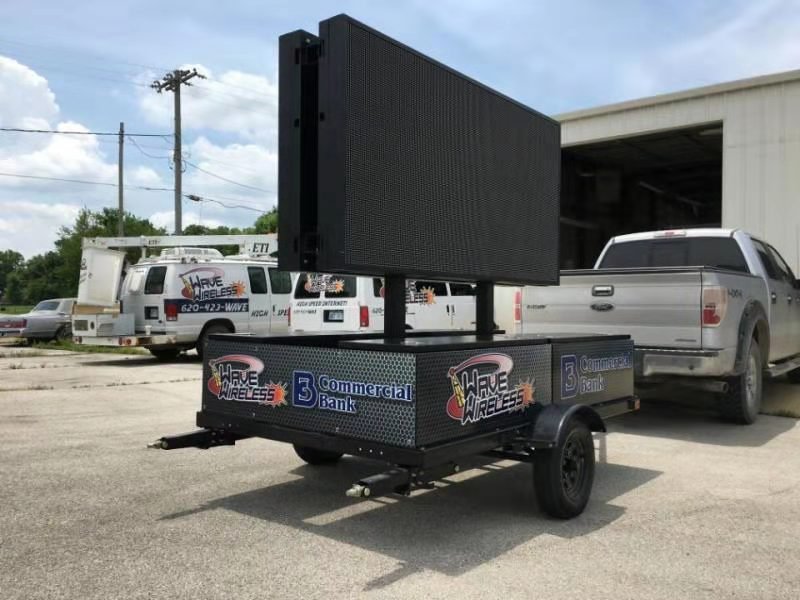

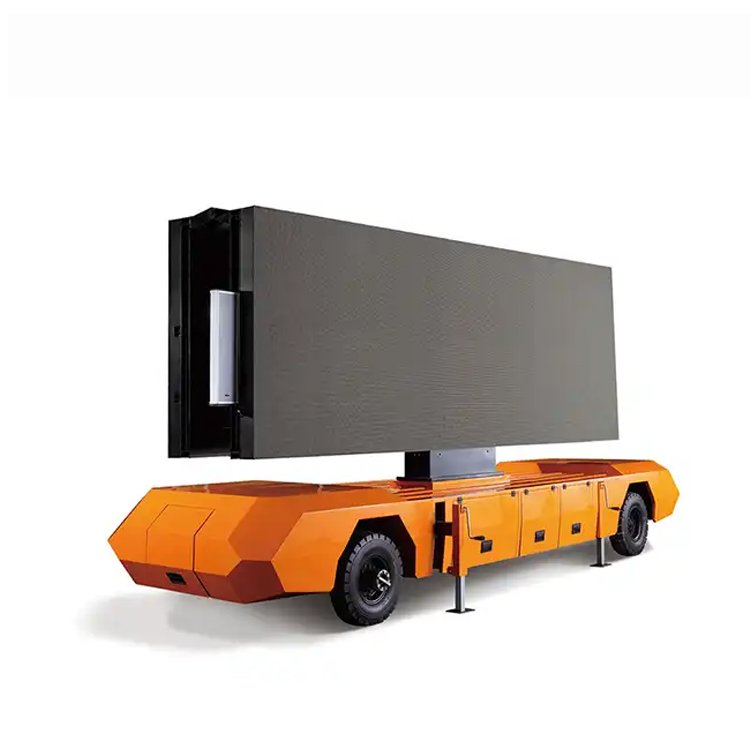

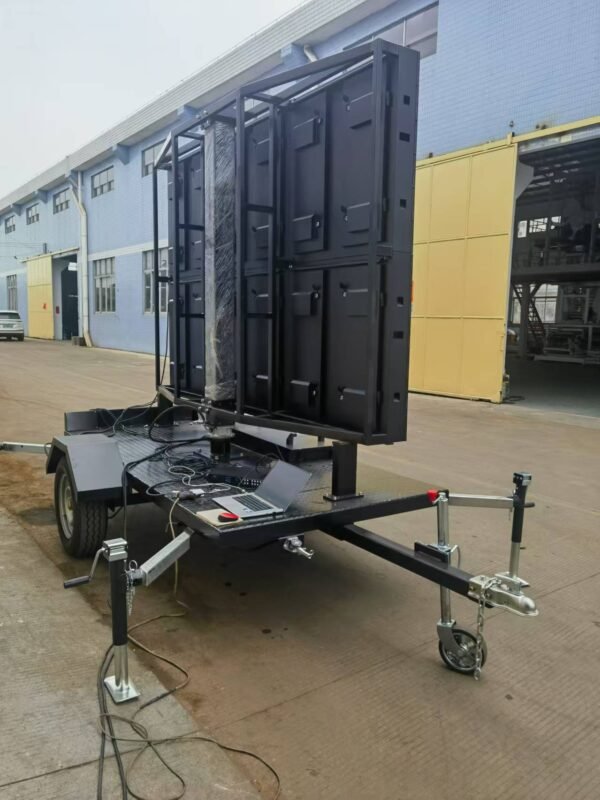

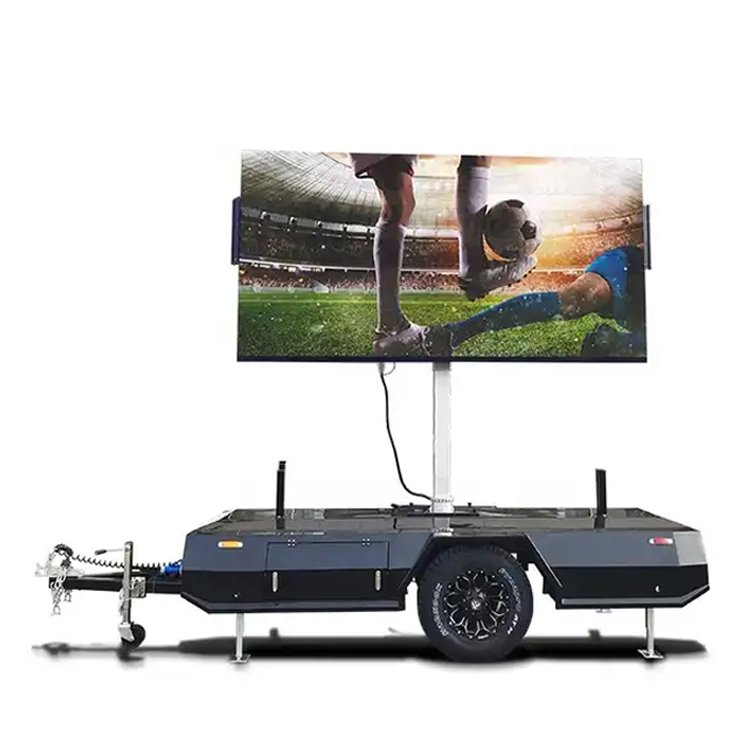

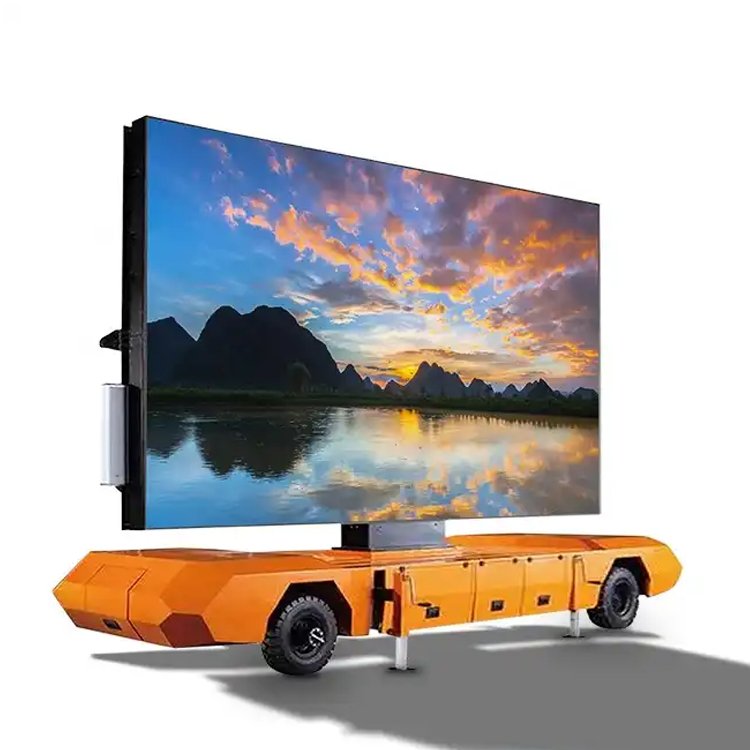

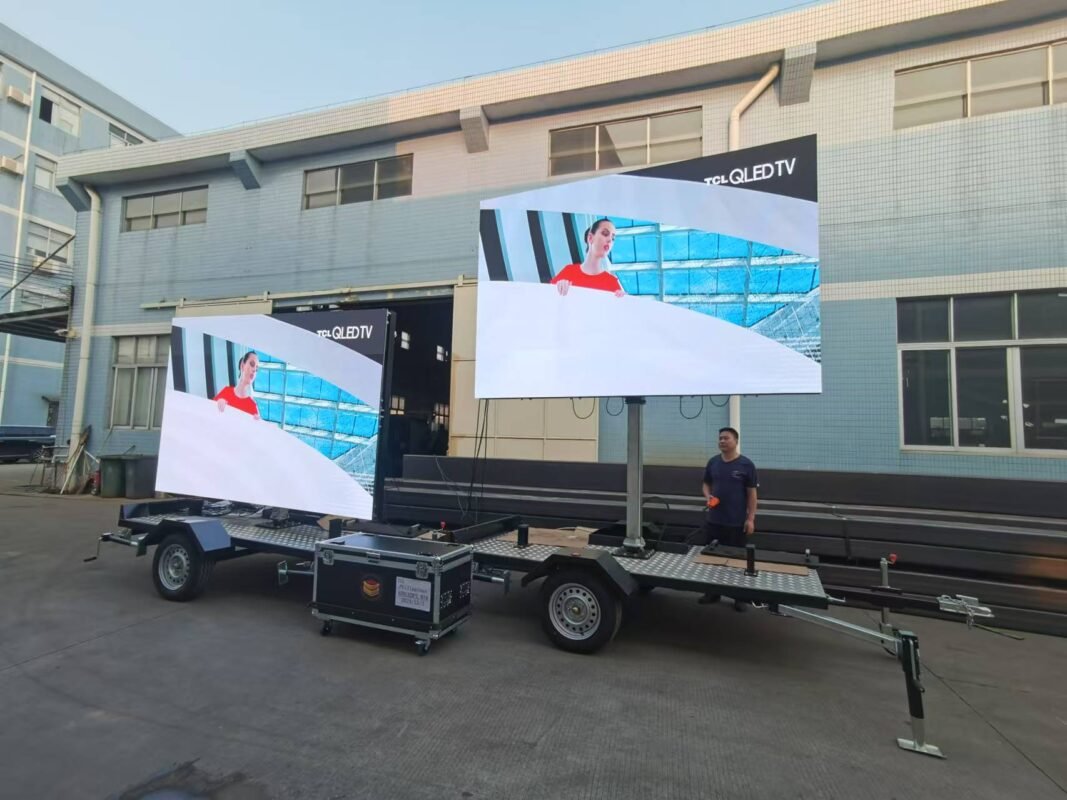

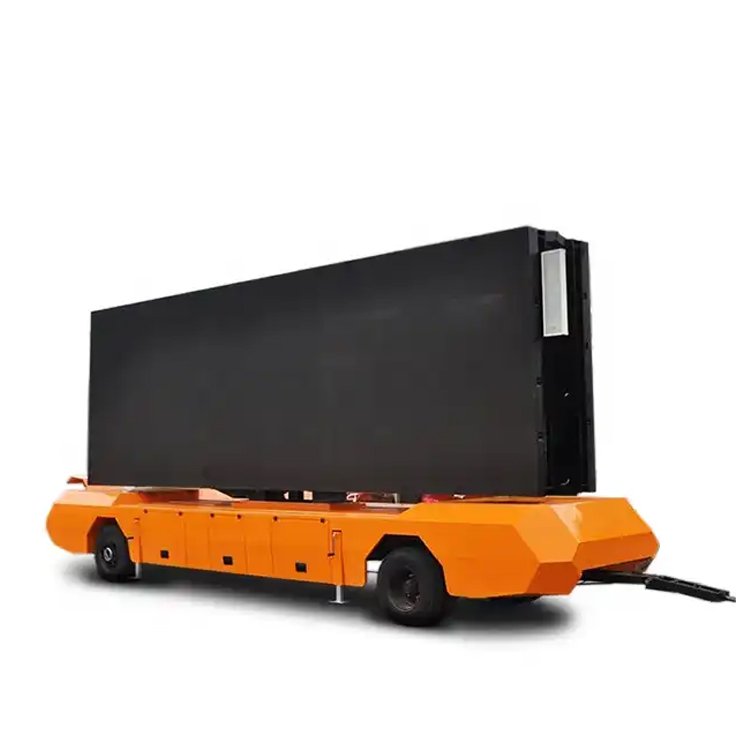

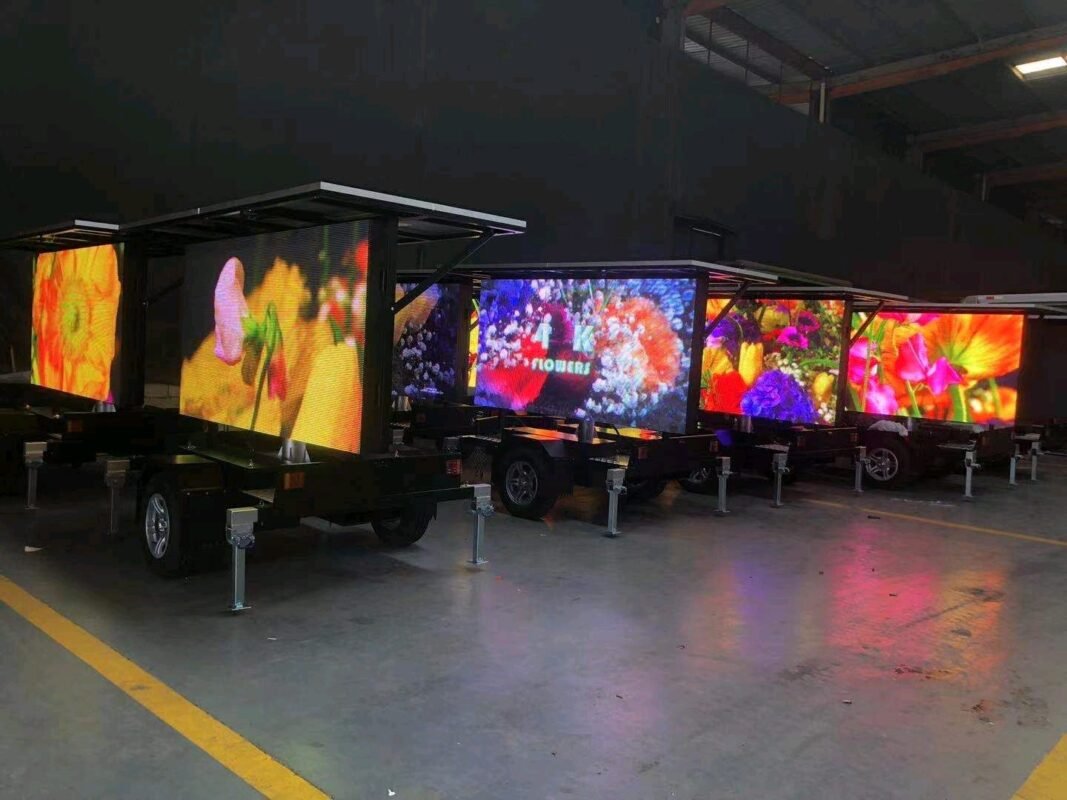

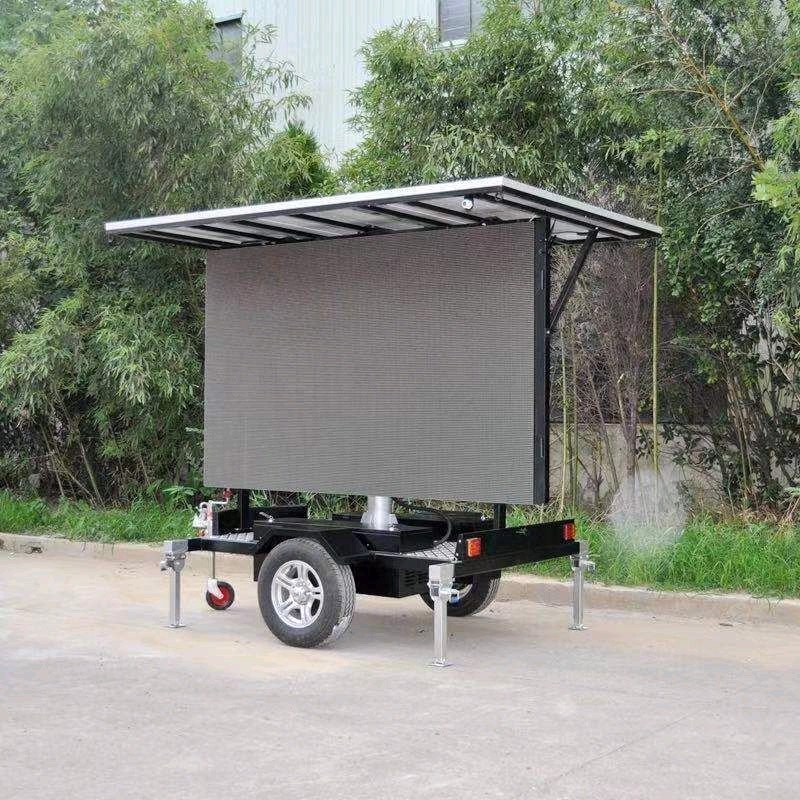

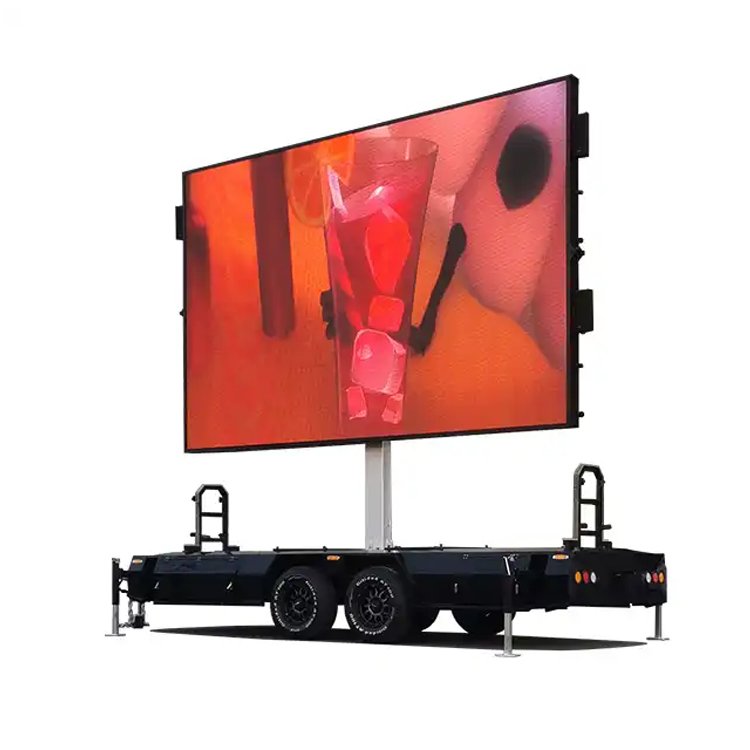

Bring High-Impact Visuals Anywhere with a Self-Contained LED Screen Trailer

ABXING’s mobile trailer LED display delivers broadcast-quality visuals in a fully portable, rugged package. Ideal for outdoor advertising, events, and emergency broadcasts, this complete plug-and-play solution includes an integrated power system and heavy-duty trailer built for tough conditions. No permanent installation or external infrastructure is needed—just bring your message to the streets, festivals, or job sites.

Key Features of ABXING Mobile Trailer LED Display

Fully Integrated & Road Legal
Each mobile LED screen trailer is a turnkey system requiring no complex assembly. Designed to meet international road transportation standards, it tows easily and sets up in under 30 minutes—perfect for fast-moving rental and advertising teams.

High Brightness & Wide Viewing Angle
With 5000–10,000 nits brightness, this outdoor LED advertising trailer remains clearly visible even in direct sunlight. A 160° wide viewing angle and multiple pixel pitch options (P2.5 to P10) ensure your content reaches more viewers.

IP65 Weatherproof & All-Weather Ready
Rated IP65, the display is fully protected against rain, dust, and moisture. Combined with robust, corrosion-resistant aluminum cabinets, this all-weather trailer LED display works reliably from -30°C to 45°C.

Flexible Power Options

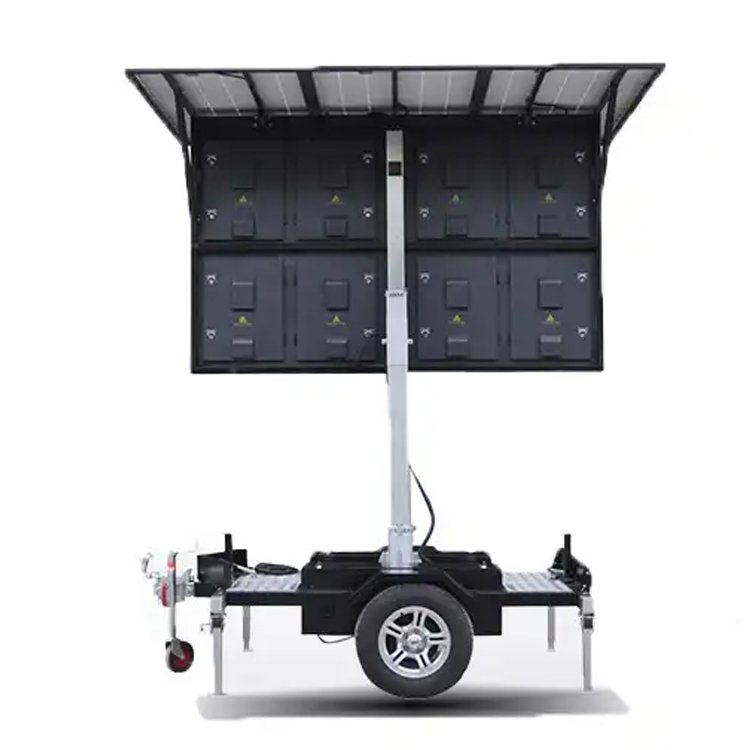

Use grid power, an onboard generator, or an optional solar hybrid system. Automatic source switching ensures your mobile LED billboard trailer runs nonstop—ideal for off-grid locations or extended outdoor campaigns.

Smart Control & Multi-Screen Sync
Control your screen remotely via 4G/5G or WiFi. Synchronize multiple trailers in real time, schedule content in advance, and monitor performance from any location.

Durable & Secure Construction
A shock-absorbing mounting system protects LEDs during transit. Reinforced frames, hydraulic self-leveling, lockable compartments, and optional side wings make this one of the most secure and versatile mobile LED video trailers available.

Who Uses ABXING Mobile Trailer LED Displays?

Event & Entertainment Pros
Perfect for concerts, sports events, festivals, and public gatherings. A mobile LED display trailer brings big-screen energy to any temporary venue.
Emergency & Public Information Units
Used by governments and emergency services for crisis broadcasts, traffic alerts, and public safety announcements.
Advertising & Retail Brands
Launch products, run mobile ad campaigns, or promote retail sales with a mobile advertising LED trailer that travels to high-footfall areas.
Construction & Corporate Sites
Display safety messages, training content, or corporate communications across multiple locations.

Why Choose ABXING?

Save on venue costs and reduce labor with fast setup
Generate new revenue streams through mobile advertising and rentals
No special towing license required for most standard models
CE, UL, and RoHS certified; backed by a 3-year warranty and 24/7 support
Customize Your Trailer
Add audio systems, live camera feeds, curved screens, custom branding wraps, or solar power. ABXING works with you to build a custom mobile LED trailer that fits your exact needs.

Ready to Move Your Message?
ABXING’s mobile trailer LED displays redefine outdoor visual communication. Whether you’re a rental company, brand advertiser, or event organizer, our trailers help you engage audiences where fixed screens can’t go.
Contact our team today for a customized proposal—let’s build your mobile visual solution together.

Parameter table

Outdoor ABXING Mobile Trailer LED Display 960*960MM Series Technical Specifications

Pixel Pitch (mm) P2.5 P3.076 P4 P5 P6.667 P8 P10
Model ABXINGMT 2.5-16SO ABXINGMT 3.076-13SO ABXINGMT 4-10SO ABXINGMT 5-8SO ABXINGMT  6.667-6SO ABXINGMT 8-5SO ABXINGMT 10-2SO
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921 SMD3535 SMD3535 SMD3535
Density (Pixels/㎡) 147,928 112,896 65,536 65,536 43,264 65,536 10,000
Module Resolution (Pixel) 128x64 104x52 80x40 64x32 144x72 40x20 32x16
Module Size (mm) 320x160 320x160 320x160 320x160 320x160 320x160 320x160
Driving Mode (Duty)  1/16  1/13   1/10  1/8  1/6  1/5  1/2
Cabinet Size (mm) 960*960 960*960 960*960 960*960 960*960 960*960 960*960
Cabinet Weight (KG) 32 32 32 32 32 32 32
Brightness (CD/㎡) 5000-5500 5000-5500 5000-5500 5000-5500 5000-5500 5000-5500 6500-10000
Viewing Angle (°) 140 140 140 140 140 140 140
Gray Grade (Bits) 14 14 14 14 14 14 14
Operation Power AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 720 720 720 720 720 720 720
Avg. Power Consumption (W/㎡) 240 240 240 240 240 240 240
Frame Frequency (Hz) ≥60 ≥60 ≥60 ≥60 ≥60 ≥60 ≥60
Refresh Frequency (Hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Working Temperature (ºC) -20～+60 -20～+60 -20～+60 -20～+60 -20～+60 -20～+60 -20～+60
Protection Grade IP65 IP65 IP65 IP65 IP65 IP65 IP65
Maintenance method Rear Rear Rear/Front Rear/Front Rear/Front Rear/Front Rear/Front

Outdoor ABXING Mobile Trailer LED Display 500*1000MM Series Technical Specifications

Pixel Pitch (mm) P2.6 P2.97 P3.91 P3.91 P4.81
Model ABXINGMT 2.6-24SO ABXINGMT 2.97-21SO ABXINGMT 3.91-16SO ABXINGMT 3.91-8SO ABXINGMT 4.81-13SO
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921 SMD1921
Density (Pixels/㎡) 147,928 112,896 65,536 65,536 43,264
Module Resolution (Pixel) 96x96 84x84 64x64 64x64 52x52
Module Size (mm) 250x250 250x250 250x250 250x250 250x250
Driving Mode (Duty)  1/24  1/21   1/16  1/8  1/13
Cabinet Size (mm) 500x1000 500x1000 500x1000 500x1000 500x1000
Cabinet Weight (KG) 13 13 13 13 13
Brightness (CD/㎡) 4500 4500 4500 5500 4500
Viewing Angle (°) 140 140 140 140 140
Gray Grade (Bits) 14 14 14 14 14
Operation Power AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 720 720 720 720 720
Avg. Power Consumption (W/㎡) 240 240 240 240 240
Frame Frequency (Hz) ≥60 ≥60 ≥60 ≥60 ≥60
Refresh Frequency (Hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Working Temperature (ºC) -20～+60 -20～+60 -20～+60 -20～+60 -20～+60
Protection Grade IP65(front), IP54(rear) IP65(front), IP54(rear) IP65(front), IP54(rear) IP65(front), IP54(rear) IP65(front), IP54(rear)
Maintenance method Rear/Front Rear/Front Rear/Front Rear/Front Rear/Front
